CE Certified 1064nm Aluminum Metal Welding Equipment No Deformation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Certification | CE, SGS |
|---|---|---|---|
| Warranty | 2 Years | Laser Type | IPG/MAX/RECI |
| Cooling System | Water Cooling | Laser Wavelength | 1064nm |
| Pulse Width | 0.5~20ms | Pulse Frequency | 0~100Hz |
| Single Pulse Energy | 80J | Focal Spot Diameter | 0.2mm~3mm |
| Welding Depth | 0.1-3.5mm | Power Supply | 220v/50Hz, 380V/50/60HZ |
| Highlight | 1064nm metal welding equipment,CE metal welding equipment,CE laser handheld welding machine |
||
Product Description

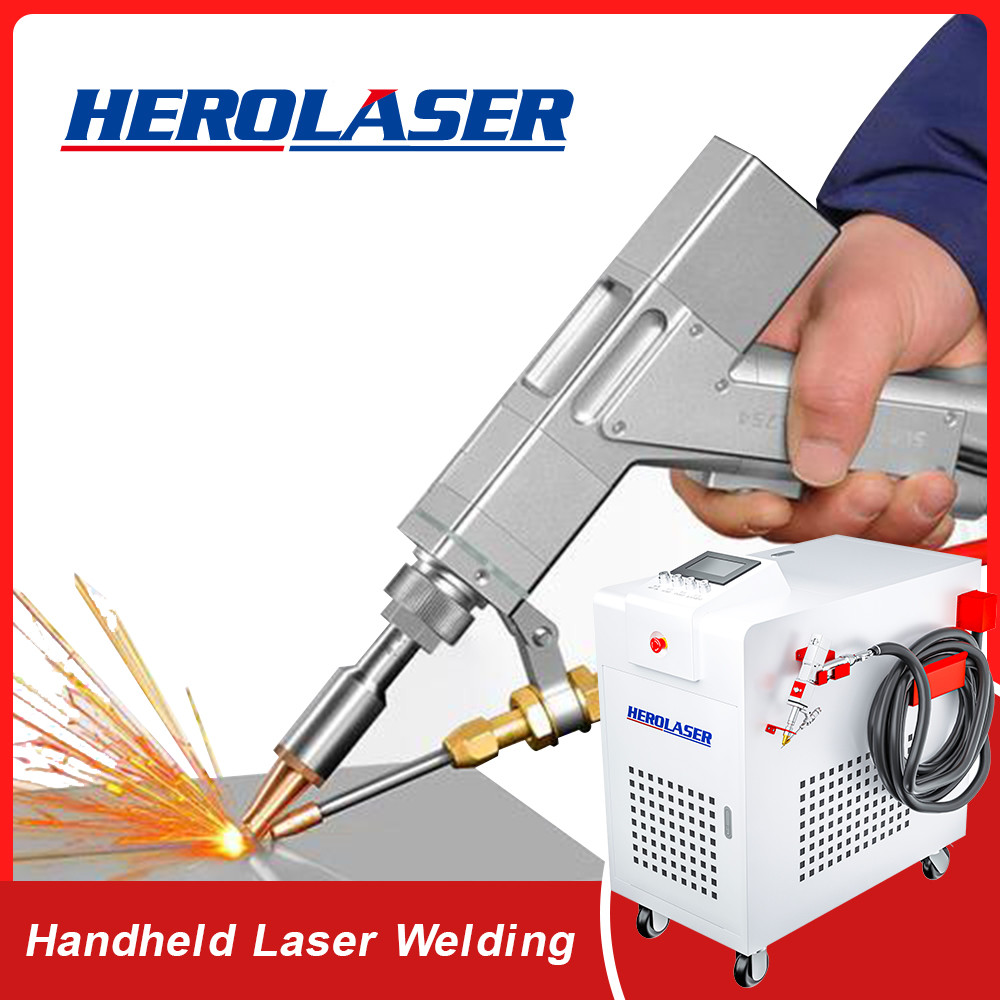

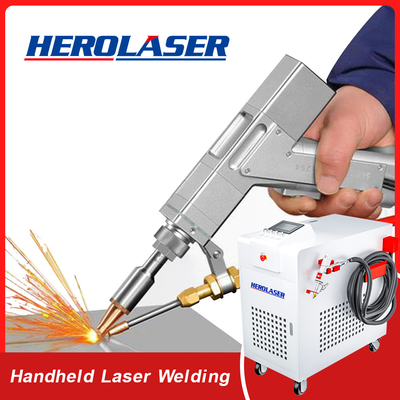

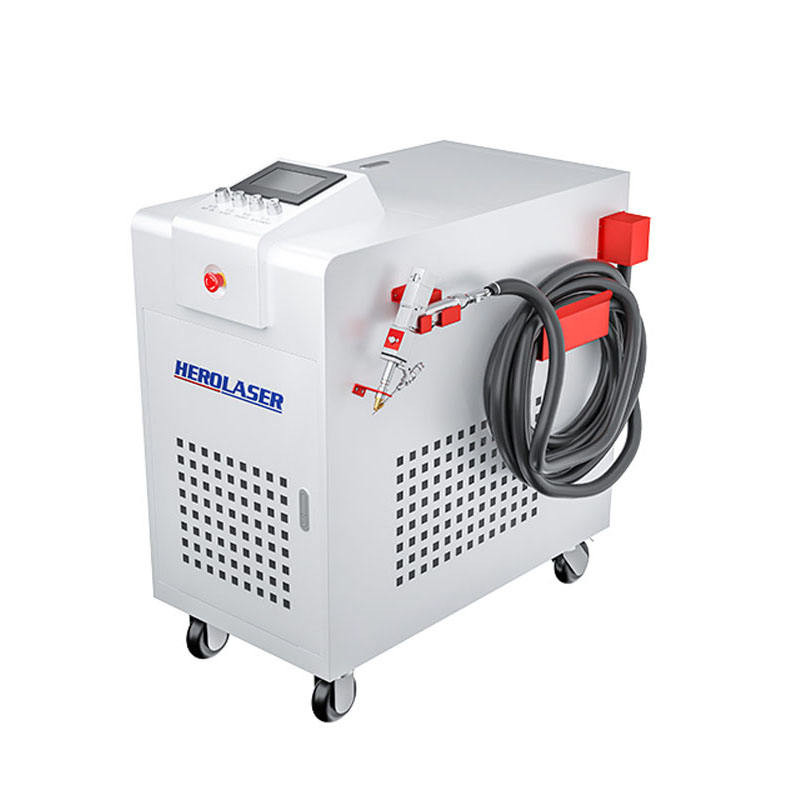

Portable Laser Welder 1000W 1500W 2000W Aluminum Metal Welding Equipment
Machine advantages:
- The welding speed is 2-10 times faster than the traditional welding speed. It can help you to save at least two welders each year;
- Laser welding consumes less material and has a long life;
- Easy to operate, even unskilled operator can weld products beautifully;

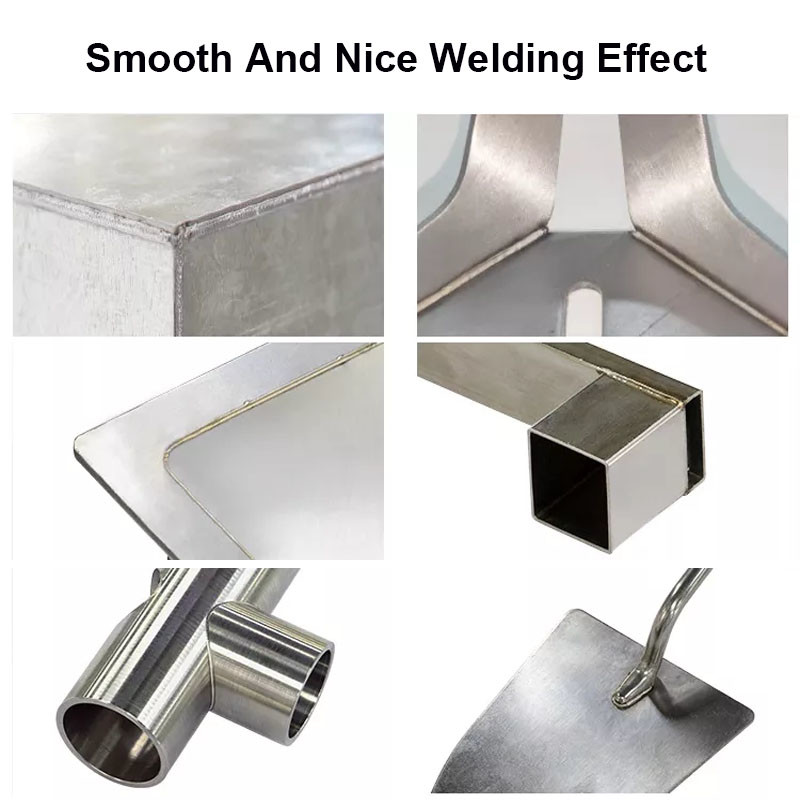

- The welding seam is smooth and small, which reduces the subsequent grinding process and saves time and cost;
- No deformation, no welding spot;
- Safer and more environment-friendly.
Specifications:
| No. | Item | ML-WF-500W | ||
| 1 | Laser Power | 500W | ||
| 2 | laser Wavelength | 1070 NM | ||
| 3 | Fiber Cable length | 10 meters | ||
| 4 | Cooling method | Water | ||
| 5 | Voltage | 220V | ||
| 6 | Power consumption | 5KW | ||
| 7 | Frequency | 50/60 HZ | ||
| 8 | Currency | 23A | ||
| 9 | Laser gun | Motor/lens wobble | ||
| 10 | Focus length | 150mm | ||
| 11 | Cryogenic water flow | 70 L/min | ||
| 12 | Room temperature water flow | 15 L/min | ||
| 13 | water | distilled water | ||
| 14 | laser Control method | laser enable+ security lock+ metal switch/ safety clamp | ||
| 15 | Touch screen | PLC screen and board | ||
| 16 | Wire feeder | auto feeding and drawback | ||
Hand-held laser welding VS Argon welding:
| Welding type | Argon welding | Laser welding |
| Labor workers | 4 | 1 |
| One person’s Labour cost/month | 8000 RMB | 6000 RMB |
| Polishing worker | 1 | 0 |
| Polishing worker’s cost/month | 9000 RMB | 0 |
| Total labour cost per month | 41000 RMB | 6000 RMB |
| Total income for labour worker/year | 492000 RMB | 72000 RMB |
Applicable to material and fields
Ambry industry, railings of stairs and elevator , shelves, oven, stainless steel guardrail , distribution box, stainless steel home supplies etc.
