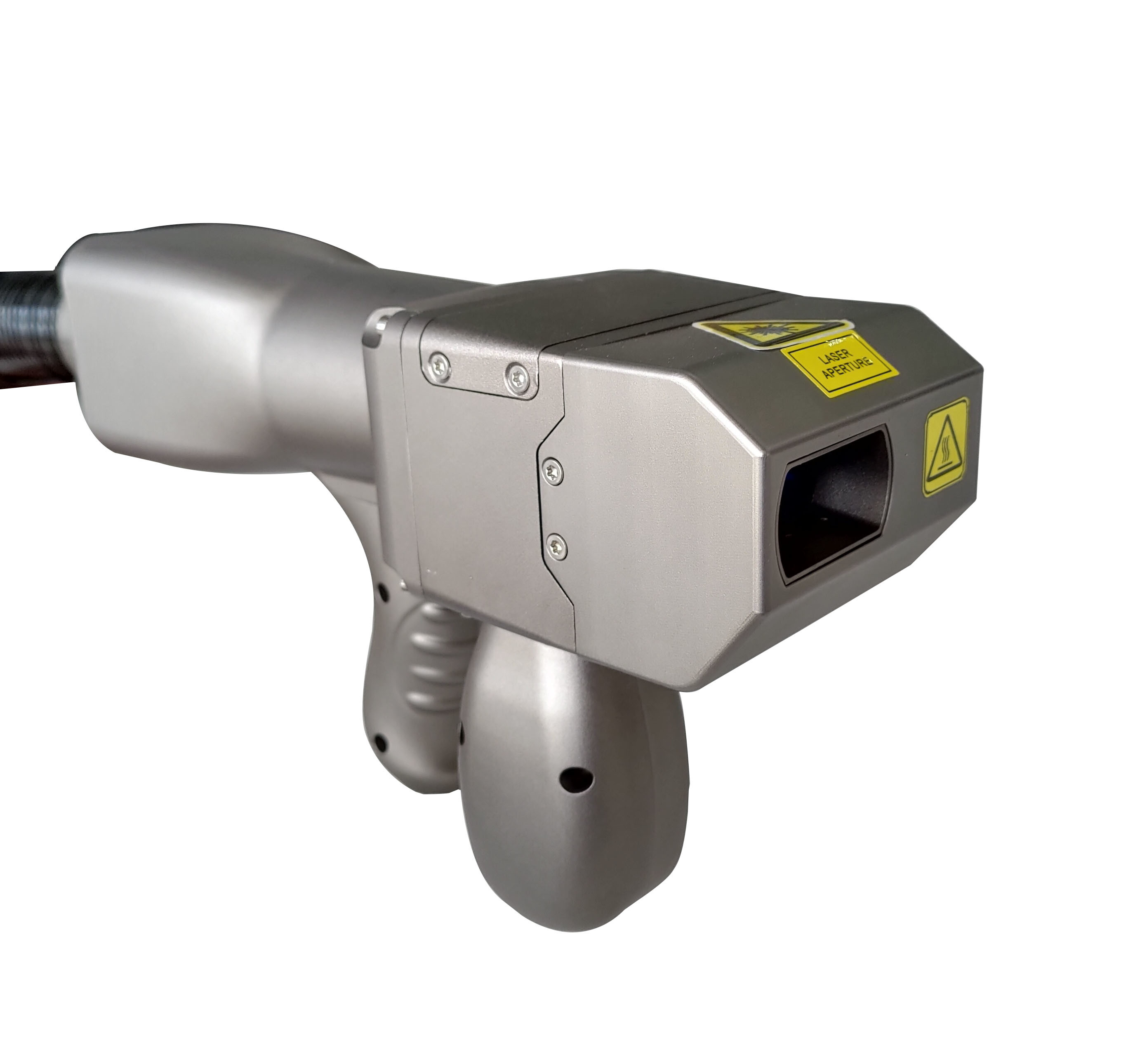

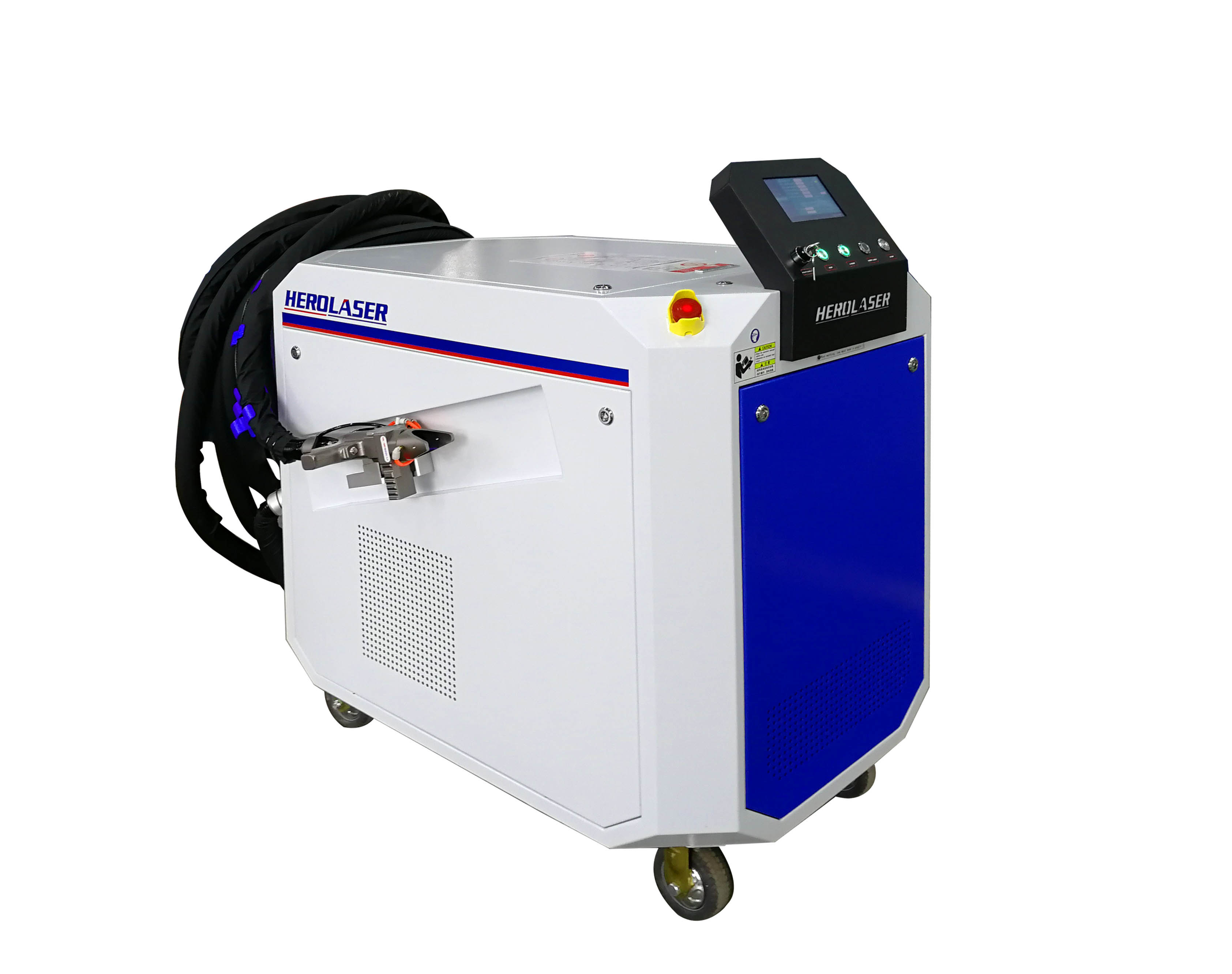

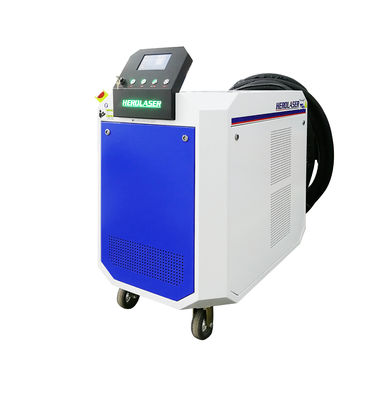

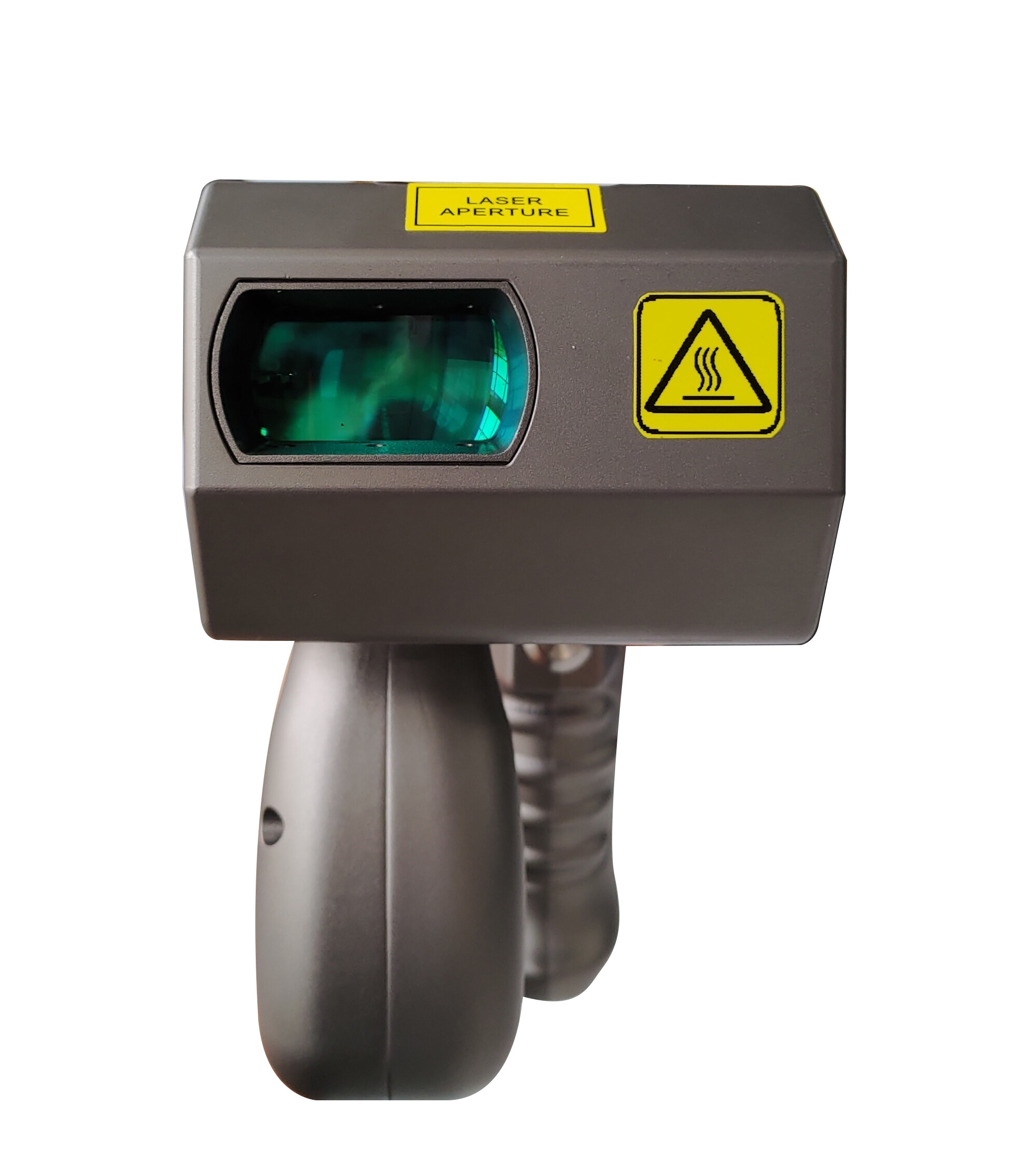

HEROLASER 200W Laser Cleaning Machine , Handheld Laser Rust Remover
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | ML-MF-200l-LC | Laser Power | 200W |
|---|---|---|---|
| Laser Source Type | IPG Fiber Laser Source | Laser Wavelength | 1064 Nm |
| Cooling Method | Water Cooling | Cooling Water | Deionized Water |
| Water Temperature | 18-22 ℃ | Maximum Power | 200 W |
| Scan Width | 10-60mm | Auxiliary Gas | Compressed Air/Nitrogen |
| Air Pressure | 0.5-0.8 MPa | Working Condition | 5-40 ℃ |
| Highlight | IPG 60mm laser cleaning machine,FDA 200w laser cleaning machine,FDA 200W handheld laser rust remover |
||
Product Description
Fiber Laser Rust Removal Machine 200W Removal Resin Noncontact Cleaning
laser cleaning machine can remove resin,oil,stain,contaminant,rust,coating,plating,paint etc,.Laser cleaning is a new technology based on the interaction effect between laser and matter.Unlike traditional mechanical cleaning,chemical cleaning and ultrasonic cleaning it does not require any CFC that destroys the ozone layer Organic solvents,no pollution,no noise,harmless to the human body and the environment,it is a "green"cleaning technology.
Technical Parameter
| Description of high efficiency laser cleaning machine | ||
| Model | ML-MF-200l-LC | |
| Laser power | 200W | |
|
Laser source type |
IPG fiber laser source | |
| Laser wavelength | 1064 nm | |
| Cooling method | Water cooling | |
| Cooling water | Deionized water | |
| Water temperature | 18-22 ℃ | |
|
Cabinet size |
1420mm*850mm*1370mm (L*W*H) | |
| Total weight(with water tank) | 225kg | |
| Maximum power | 2000W | |
| Focal depth | 10mm | |
| Scan width | 10-60 mm | |
| Auxiliary gas | Compressed air/Nitrogen | |
| Air pressure | 0.5-0.8 MPa | |
| Optional accessory | Handheld / Manipulator | |
| Working condition | 5-40 ℃ | |
Application
| Application | |||
| Rust Removal | Oxide Removal | Molding Cleaning | Surface Preparation |
| Paint Removal | Surface Cleaning | Stain Removal | Surface Roughening |
| Tool Cleaning | Historic Restoration | Selective Paint Removal | Precise Cleaning |
Features
- Non-contact cleaning, no damage to work piece
- Precision positioning, selective cleaning
- Safe & environment-friendly. Without using chemical detergent or other consumables
- Easy to operate, with portable mode and could be equipped with robot for automatic cleaning
- High efficiency, time-saving
- Stable laser cleaning system, practically maintenance free
Packaging & Shipping
Five categories in conventional cleaning process:
(1)
Mechanical cleaning process, which cleans the surface by physical smearing, scrubbing, and
brushing. However this ineffective cleaning method can easily damages the surface of the
substrate.
(2)
Chemical etching process, which removes the surface contaminant by spraying or vibrating
through organic cleaning solvent. However dirty areas with multiple material compositions
are difficult to remove and need multiple times of procedures through this environmental
unfriendly cleaning process.
(3)
Sand-blasting cleaning process can cause serve dust pollutions during the process, which
can harm operator’s personal health.
(4)
Ultrasonic cleaning process is based on the ultrasonic vibration phenomenon that can
effectively clean the surface of materials. However materials with large geometry size or
complex shape structure are unable to be cleaned in this method, also the surface can be
easily oxidised after ultrasonic cleaning process.
(5)
Dry-ice cleaning process is a high-running cost cleaning process. It has some drawbacks –
storage of dry-ice and collection of the contaminant after the process.
