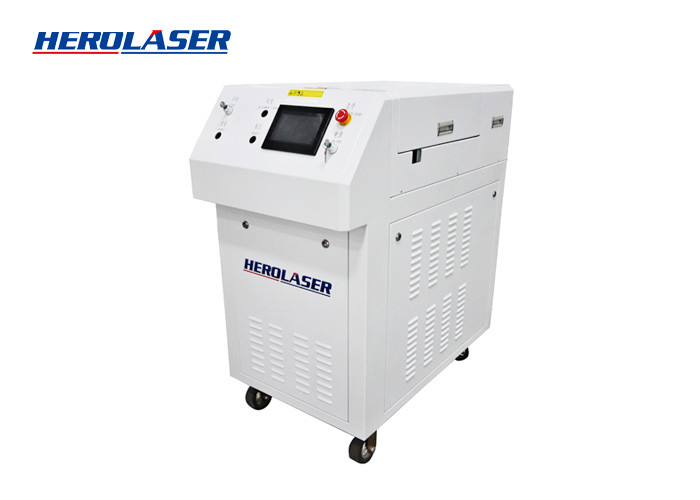

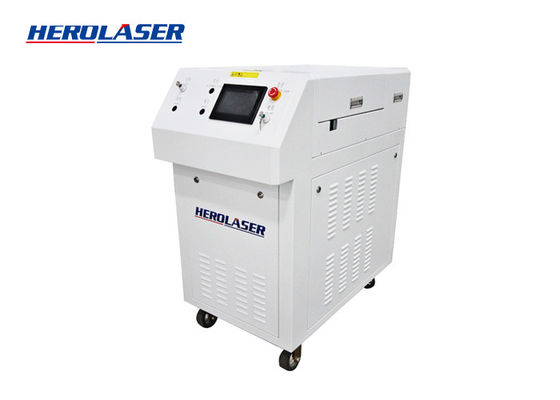

Auto Feeding Wobble 3.5mm Fiber IPG Handheld Laser Welder For Metals

  • Auto Feeding Wobble 3.5mm Fiber IPG Handheld Laser Welder For Metals
  • Auto Feeding Wobble 3.5mm Fiber IPG Handheld Laser Welder For Metals
Place of Origin CHINA
Brand Name Herolaser
Certification CE/ISO
Model Number ML-1500
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 10-15DAYS
Payment Terms T/T, L/C, D/A, D/P
Supply Ability 100 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pulse Width 0.5~20ms Certification CE, SGS
Condition New Warranty 2 Years
Single Pulse Energy 80J Focal Spot Diameter 0.2mm~3mm
Cooling System Water Cooling Welding Depth 0.1-3.5mm
Pulse Frequency 0~100Hz Laser Wavelength 1064nm
Power Supply 220v/50Hz, 380V/50/60HZ Laser Type IPG Fiber Laser Generator
Keywords Efficient Laser Welding Machine Max. Output Power 500w
Highlight

SGS 3.5mm IPG Handheld Laser Welder

,

fiber IPG Handheld Laser Welder

,

SGS IPG wobble laser welding
Leave a Message
Product Description

Laser Machine 1500W Welder Wobble Technology Laser Welding Machine Handheld



Herolaser hand-held laser welding machine

Equipped with self-invented wobble welding head, we developed the wobble welding mode. Our products remedy the inadequacies of the traditional laser products with the alternating spot size and the high fault tolerance, obtaining a better formation of weld.

Different welding manners with various welding heads can be realized through the simple operation.



  • Higher welding speed: 2 times faster than traditional ones;
  • Longer life, safer, greener;
  • Less consumables: every machine can save at least 2 welding heads each year.



Specifications

No. Item ML-WF-1500W
1 Laser Power 1500W
2 laser Wavelength 1070 NM
3 Fiber Cable length 10 meters
4 Cooling method Water
5 Voltage 220V
6 Power consumption 5KW
7 Frequency 50/60 HZ
8 Currency 23A
9 Laser gun Motor/lens wobble
10 Focus length 150mm
11 Cryogenic water flow 70 L/min
12 Room temperature water flow 15 L/min
13 water distilled water
14 laser Control method laser enable+ security lock+ metal switch/ safety clamp
15 Touch screen PLC screen and board
16 Wire feeder auto feeding and drawback



Material Protective gas Welding depth 500W 1000W 1500W 2000W
Aluminum N2 1.0   √ √ √
1.2   √ √ √
1.5     √ √
2.0     √ √
2.5       √
Stainless Steel Argon 0.5 √ √ √ √
0.8 √ √ √ √
1.0 √ √ √ √
1.2   √ √ √
1.5   √ √ √
2.0   √ √ √
2.5     √ √
3.0       √
Carbon steel CO2 0.5 √ √ √ √
0.8 √ √ √ √
1.0 √ √ √ √
1.2   √ √ √
1.5     √ √
2.0     √ √
2.5     √ √
galvanized sheet

Argon



 0.5 √ √ √ √
0.8 √ √ √ √
1.0   √ √ √
1.2   √ √ √
1.5     √ √
2.0       √
2.5       √


Auto Feeding Wobble 3.5mm Fiber IPG Handheld Laser Welder For Metals 0



Applicable to material and fields
Ambry industry, railings of stairs and elevator, shelves, oven, stainless steel guardrail, distribution box, stainless steel home supplies etc.



Auto Feeding Wobble 3.5mm Fiber IPG Handheld Laser Welder For Metals 1

Auto Feeding Wobble 3.5mm Fiber IPG Handheld Laser Welder For Metals 2
