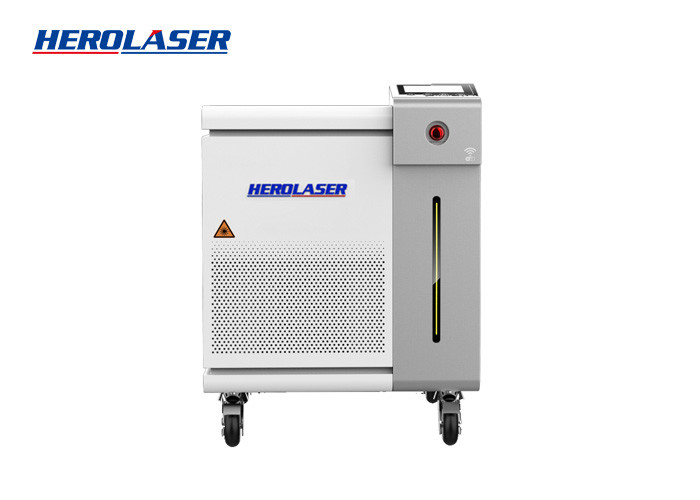

Herolaser Handheld Fiber Laser Welding Machine

  • Herolaser Handheld Fiber Laser Welding Machine
  • Herolaser Handheld Fiber Laser Welding Machine
  • Herolaser Handheld Fiber Laser Welding Machine
  • Herolaser Handheld Fiber Laser Welding Machine
Place of Origin CHINA
Brand Name Herolaser
Certification CE/ISO
Model Number ML-2000
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 10-15DAYS
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 100 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pulse Width 0.5~20ms Certification CE, SGS
Condition New Warranty 2 Years
Single Pulse Energy 80J Focal Spot Diameter 0.2mm~3mm
Cooling System Water Cooling Welding Depth 0.1-3.5mm
Pulse Frequency 0~100Hz Laser Wavelength 1064nm
Power Supply 220v/50Hz, 380V/50/60HZ Laser Type IPG Fiber Laser Generator
Keywords High-quality Laser Welding Machine
Highlight

80J Handheld Fiber Laser Welding Machine

,

Herolaser Handheld Fiber Laser Welding Machine

,

Herolaser portable laser welding machine
Leave a Message
Product Description

High Cost-Efficient Laser Welding Machine 1500W Laser Welder



Herolaser New Gen. Laser Welding Machine



This machine is equipped with our own invention of wobble welding head, successfully developed the wobble welding mode. The product makes up for the defects of traditional laser products, has the advantages of alternate spot size and strong fault tolerance, and obtains better weld forming effect.

Through simple operation, different welding methods of different welding heads can be realized.



Product specifications:



No. Item ML-WF-1500W
1 Laser Power 1500W
2 laser Wavelength 1070 NM
3 Fiber Cable length 10 meters
4 Cooling method Water
5 Voltage 220V
6 Power consumption 5KW
7 Frequency 50/60 HZ
8 Currency 23A
9 Laser gun Motor/lens wobble
10 Focus length 150mm
11 Cryogenic water flow 70 L/min
12 Room temperature water flow 15 L/min
13 water distilled water
14 laser Control method laser enable+ security lock+ metal switch/ safety clamp
15 Touch screen PLC screen and board
16 Wire feeder auto feeding and drawback



Herolaser hand-held laser welding VS Argon welding:



Welding type Argon welding Laser welding
Labor workers 4 1
One person’s Labour cost/month 8000 RMB 6000 RMB
Polishing worker 1 0
Polishing worker’s cost/month 9000 RMB 0
Total labour cost per month 41000 RMB 6000 RMB
Total income for labour worker/year 492000 RMB 72000 RMB





Herolaser Handheld Fiber Laser Welding Machine 0
