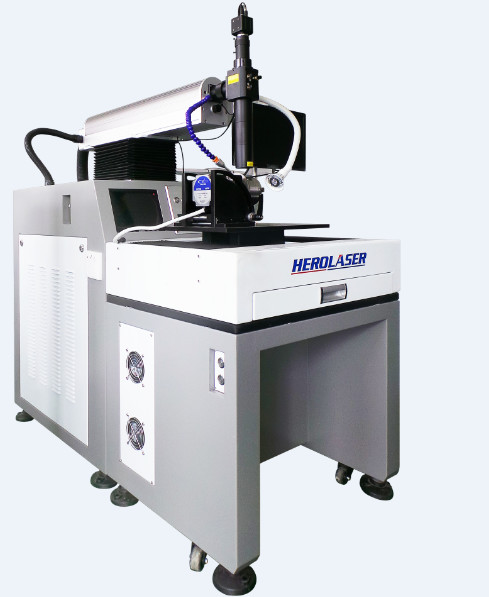

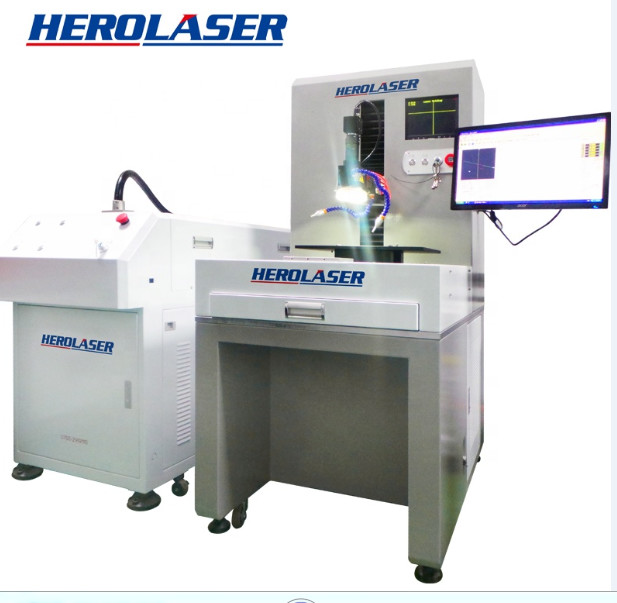

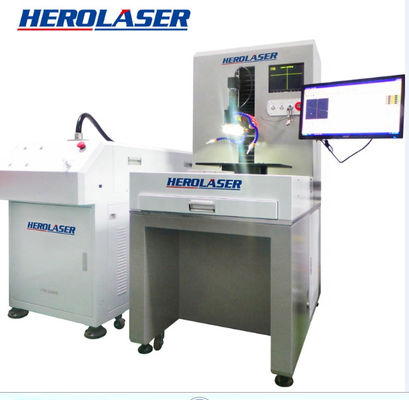

200W Automatic Laser Welding Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Herolaser | Warranty | 1Year , 2 Year |
|---|---|---|---|
| Laser Source Brand | IPG/MAX/RECI | Transportation | Ocean Freight , Air Transportation , Railway Transportation |
| Deliver Method | FOB , CFR | Application | Electrical Accessories Processing , Handicraft Processing , Hardware Processing , Mold Processing |
| After-Sales Service | Professional Technical Taem 24 Hours Online | Keywords | Damage Free Marking |
| Highlight | RECI Automatic Laser Welding Machine,200W Automatic Laser Welding Machine,200W handheld laser welder for aluminum |
||
Product Description
200W Three-Dimensional Automatic Precision Welding Machine For Precision Sheet Metal Processing Three-dimensional automatic welding machineThis special continuous fiber laser welding machine is specialized in the application of traditional hardware, new energy and other industries of laser welding equipment. It has the advantages of high peak power, good beam quality, thin spot and flexible installation. Laser beam can realize different spot shapes, and can process abnormal spot at the same time, which can meet the high requirements of hybrid welding and other welding effects, and realize precise and efficient welding
- Adopts the UK imported double lamp ceramic condenser cavity, corrosion resistance, high temperature resistance, cavity life of 8-10 years
- High production efficiency, fast welding speed, automatic production line can be realized
- The laser head can be rotated 360°, the whole optical path part can be rotated 360° and the front and back telescopic
- Two - dimensional electric table, can adjust the diameter of the spot
| SN | Item | Parameter |
| 1 | Model | ML-W200 |
| 2 | Laser Working Substance | ND: YAG |
| 3 | Rated Output | 200W |
| 4 | Maximum Output | 240W |
| 5 | The Laser Wave Length | 1064NM |
| 6 | Photoelectric Range | 0.2MM—3.0MM(Adjust) |
| 7 | The Pulse Width | 0.1MS-20MS |
| 8 | The Depth Of The Weld | ≤2MM |
| 9 | Pulse Frequency | ≤100HZ |
| 10 | The Machine Power | 6KM |
| 11 | Control System | PC |
| 12 | Aimed At Positioning | Microscope , CCD , Red Light |
| 13 | Table Travel | 200*200MM |
| 14 | Demand For Electricity | 380V/Three-phase power/50HZ/100A |
| 15 | Host System Size | 1600*1200*1300MM |
| 16 | Cooling System Dimensions | 1200*300*900MM |
| Vacuum Cup | stainless Steel Bowl | Sensor | Tungsten Filament |
| High Power Diode Triode | Aluminum Alloy | Laptop Case | Cell Phone Battery |
| Door Handle | Mould | Electrical Accessories | Filter |
| Nozzle | Stainless Steel Products | Golf Ball Head | Zinc-Alloy Handicraft |
FAQ
1. How is the payment?
30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
Ship in 7 days after 100% payment
Plywood box packaging
3. How will you guarantee aftersales services?
We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online
4. How about your presales service?
Speeding offer within 8 hours quick response and free consulting
Free sample marking or testing is available
Progressing solution design to all clients, including distributors and end users
1. How is the payment?
30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
Ship in 7 days after 100% payment
Plywood box packaging
3. How will you guarantee aftersales services?
We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online
4. How about your presales service?
Speeding offer within 8 hours quick response and free consulting
Free sample marking or testing is available
Progressing solution design to all clients, including distributors and end users
