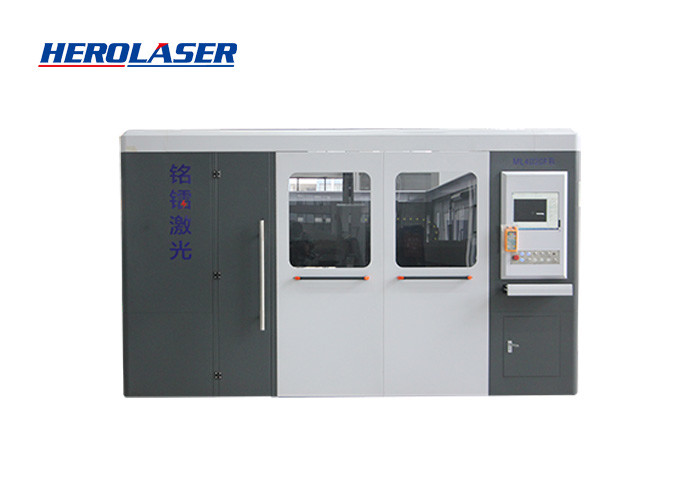

Accurate 1070nm 4020 CNC Metal Laser Cutter, Stainless Steel Laser Cutter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | ML-CZ-4020FB | Overall Power Consumption | 80KW |
|---|---|---|---|
| Machine Tool Load-bearing | 1500KG | Electricity Demand | AC380V±5%/50Hz |
| Cutting Area | 4000*2000mm | Machine Dimensions | 11500x3400x2100mm |
| Highlight | 4020 cnc metal laser cutter,1070nm cnc metal laser cutter,1070nm stainless steel laser cutter |
||
Product Description
4020 Economical Efficient Accurate Sheet Metal Laser Cutting Machine with Parallel Exchange Station
ML-CZ-4020FB is one of Herolaser excellent fiber laser cutting machines with advanced structure design and excellent mechanical performance. It adopts a world-class numerical control system and fiber laser, gantry double-drive structure, and an integral welding base. After rough processing, the process vibration aging treatment is carried out to eliminate the stress in the welding process. Its rack and pinion transmission structure has the advantages of high speed, high precision, one-time cutting, no need for subsequent processing, etc., which greatly improves the processing efficiency and saves materials. Advanced technology can increase the speed of your company's new product development and recover the cost of equipment investment as soon as possible. This machine is widely used in sheet metal processing, advertising sign production, mechanical parts, kitchenware, metal crafts, saw blades, hardware and other industries. It can also be used for cutting carbon steel, stainless steel, aluminum alloy, carbon steel, copper and other metals.
- Using parallel exchange station, the exchange can be completed in 20 seconds with high efficiency;
- Good processing flexibility to process arbitrary graphics;
- Low power consumption, no reaction gas and no mechanical deformation.
Technical Parameters of ML-CZ-4020FB
| Item | Technical parameters | |
| 1 | Model | ML-CZ-4020FB |
| 2 | Laser wavelength | 1070nm |
| 3 | Laser output power | 6000W |
| 4 | Effective cutting range | 4000mm*2000mm |
| 5 | Cutting thickness (related to laser power) | Carbon steel ≤ 22mm; Stainless steel ≤ 14mm; Aluminum alloy ≤ 12mm; Brass ≤ 10mm |
| 6 | Positioning accuracy | ±0.03mm/m |
| 7 | Repeat positioning accuracy | ±0.02mm/m |
| 8 | Synthesis speed | 120m/min |
| 9 | Acceleration during idle operation | 1.0G |
| 10 | Machine tool load-bearing | 1500KG |
| 11 | Electricity demand | AC380V±5%/50Hz |
| 12 | Overall power consumption | 80KW |
| 13 | Machine dimensions | 11500x3400x2100mm |
| 14 | Machine weight | Around 9.5T |
| 15 | Support graphic format | plt/dxf... |
