Herolaser Equipment Handheld Laser Welder For Aluminum
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Herolaser | Warranty | 1Year , 2 Year |
|---|---|---|---|
| Laser Source Brand | IPG/MAX/RECI | Transportation | Ocean Freight , Air Transportation , Railway Transportation |
| Deliver Method | FOB , CFR | Application | Electrical Accessories Processing , Handicraft Processing , Hardware Processing , Mold Processing |
| After-Sales Service | Professional Technical Taem 24 Hours Online | Keywords | Damage Free Marking |
| Highlight | 400W handheld laser welder for aluminum,Herolaser Equipment handheld laser welder for aluminum,Herolaser Equipment laser welding machine handheld |
||
Product Description

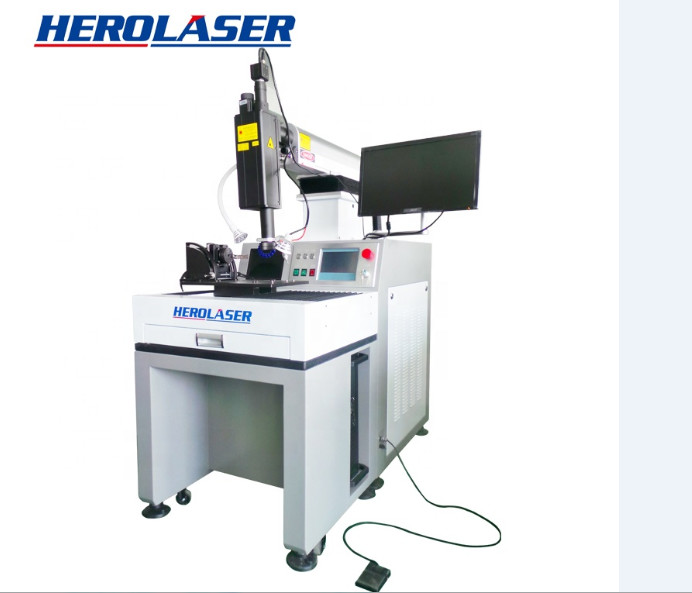

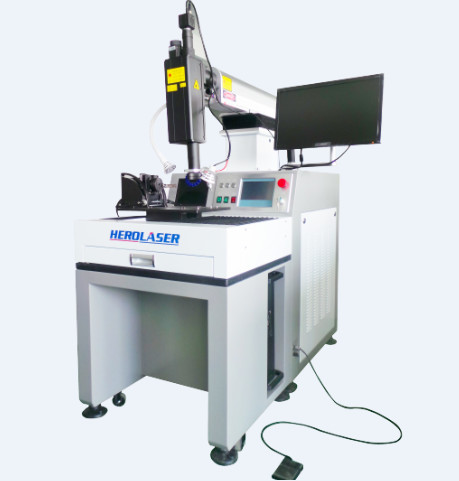

400W High Precision Automatic Laser Welding Machine For All Kinds Of Metal Processing And WeldingThe four-dimensional laser welding machine is developed and produced by introducing German welding machine technology. It is suitable for welding plane, straight line, arc and any trace of various materials.
Four dimensional automatic laser welding machine adopts integrated design, compact and beautiful structure, with high output power, stable energy, good beam mode, simple operation, reliable performance and wide application range. The ceramic laser cavity technology imported from England is adopted, and the unique beam mode selection and shaping technology is used to ensure high output power and excellent beam mode. Double pulse xenon lamp excitation, constant current laser power supply, pulse programmable and intelligent system management, and automatic protection of misoperation, over temperature and under water flow. PLC programmable controller or industrial PC control, X / Y / Z axis three-dimensional automatic moving platform. The semiconductor red light indicates the positioning, and the incident angle of focusing and deflecting laser can be moved up and down manually
- The X, y, Z and D axes of the welded sample are step driven to meet the needs of large stroke
- It has the advantages of high repetition precision, fast welding speed and high efficiency
- It can weld point, straight line, circle, ellipse and square plane arbitrary track
- High power laser power supply, meet 24 hours mass production
- With auto focus and rotation function, it can weld products of any shape in 3D space
- Specially designed for laser welding four axis linkage control system, stable performance, easy to u
| SN | Item | Parameter |
| 1 | Model | ML-W400 |
| 2 | Laser Working Substance | ND: YAG |
| 3 | Rated Output | 400W |
| 4 | Maximum Output | 500W |
| 5 | The Laser Wave Length | 1064NM |
| 6 | Photoelectric Range | 0.2MM—3.0MM(Adjust) |
| 7 | The Pulse Width | 0.1MS-20MS |
| 8 | The Depth Of The Weld | ≤6MM |
| 9 | Pulse Frequency | ≤100HZ |
| 10 | The Machine Power | 12KM |
| 11 | Control System | PC |
| 12 | Aimed At Positioning | Microscope ,CCD , Red Light |
| 13 | Table Travel | 200*200MM—1200*1200MM(Optional) |
| 14 | Demand For Electricity | 380V/Three-phase power/50HZ/100A |
| 15 | Host System Size | 1600*1200*1300MM |
| 16 | Cooling System Dimensions | 1200*300*900MM |
| acuum Cup | stainless Steel Bowl | Sensor | Tungsten Filament |
| High Power Diode Triode | Aluminum Alloy | Laptop Case | Cell Phone Battery |
| Door Handle | Mould | Electrical Accessories | Filter |
| Nozzle | Stainless Steel Products | Golf Ball Head | Zinc-Alloy Handicraft |
FAQ
1. How is the payment?
30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
Ship in 7 days after 100% payment
Plywood box packaging
3. How will you guarantee aftersales services?
We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online
4. How about your presales service?
Speeding offer within 8 hours quick response and free consulting
Free sample marking or testing is available
Progressing solution design to all clients, including distributors and end users
