High Energy 120mm/S 1070nm Steel Welding Machine Double Position
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Herolaser | Warranty | 1Year , 2 Year |
|---|---|---|---|
| Laser Source Brand | IPG/MAX/RECI | Transportation | Ocean Freight , Air Transportation , Railway Transportation |
| Deliver Method | FOB , CFR | Application | Electrical Accessories Processing , Handicraft Processing , Hardware Processing , Mold Processing |
| After-Sales Service | Professional Technical Taem 24 Hours Online | Keywords | Damage Free Marking |
| Highlight | 1070nm steel welding machine,120mm/s steel welding machine,1070nm high energy beam welding |
||
Product Description

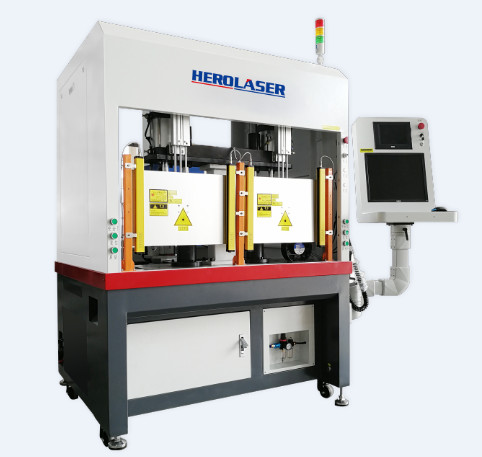

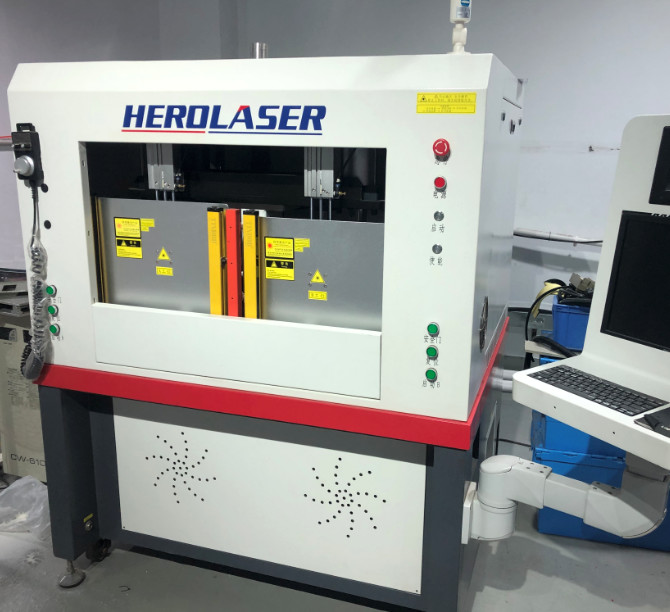

3000 W Four Axis Linkage Double Position Door Handle Laser Welding Machine For Specially Customized WeldingThe laser welding machine provides complete welding process plan for chrome plated handle, alloy handle, hardware handle, etc. The most popular stainless steel door handle and handle are products with strong appearance. Therefore, the outer surface welding appearance of the products must be seamless after welding without concave grinding. Compared with the traditional welding process, low power high frequency pulse laser seam welding has the advantages of high power density, energy concentration, small heat input, narrow weld and small deformation, Moreover, the laser beam can obtain a small spot after focusing, and can be precisely positioned. These characteristics make laser seam welding more suitable for the welding of precision workpiece than other welding methods.
- According to different types of products, different welding tracks can be run to meet the needs of products
- Four axis linkage, precision servo motor and linear rail are adopted to ensure the repeatability of equipment operation, and the process precision is within plus or minus 0.05
- The main components of the laser are imported products, and the design life of the laser cavity can reach 8-10 years
- PLC display function is complete, easy to identify
- CCD, can track the whole welding system, allows operators to monitor the welding quality at any time
| SN | Item | Parameter |
| 1 | Equipment Name | Double position door handle laser welding machine |
| 2 | laser power | 1000W |
| 3 | Laser wavelength | 1070NM |
| 4 | Equipment size | 135*110*188cm |
| 5 | operation mode | Continuous / modulation |
| 6 | Welding speed range | 0~120mm/s |
| 7 | Cooling water tank | Industrial constant temperature water tank |
| 8 | Working environment temperature range | 15~35℃ |
| 9 | Working environment temperature range | ＜70%No condensation |
| 10 | Recommended welding thickness | 0.5-3mm |
| 11 | Welding seam requirements | ＜0.5mm |
| 12 | working voltage | AV220 |
FAQ
1. How is the payment?
30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
Ship in 7 days after 100% payment
Plywood box packaging
3. How will you guarantee aftersales services?
We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online
4. How about your presales service?
Speeding offer within 8 hours quick response and free consulting
Free sample marking or testing is available
Progressing solution design to all clients, including distributors and end users
