808nm High Automation Benchtop Laser Welder , Hand Laser Welding Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Herolaser | Warranty | 1Year , 2 Year |
|---|---|---|---|
| Laser Source Brand | IPG/MAX/RECI | Transportation | Ocean Freight , Air Transportation , Railway Transportation |
| Deliver Method | FOB , CFR | Application | Electrical Accessories Processing , Handicraft Processing , Hardware Processing , Mold Processing |
| After-Sales Service | Professional Technical Taem 24 Hours Online | Keywords | Damage Free Marking |
| Highlight | High automation Benchtop Laser Welder,808nm benchtop laser welder,808nm hand laser welding machine |
||
Product Description

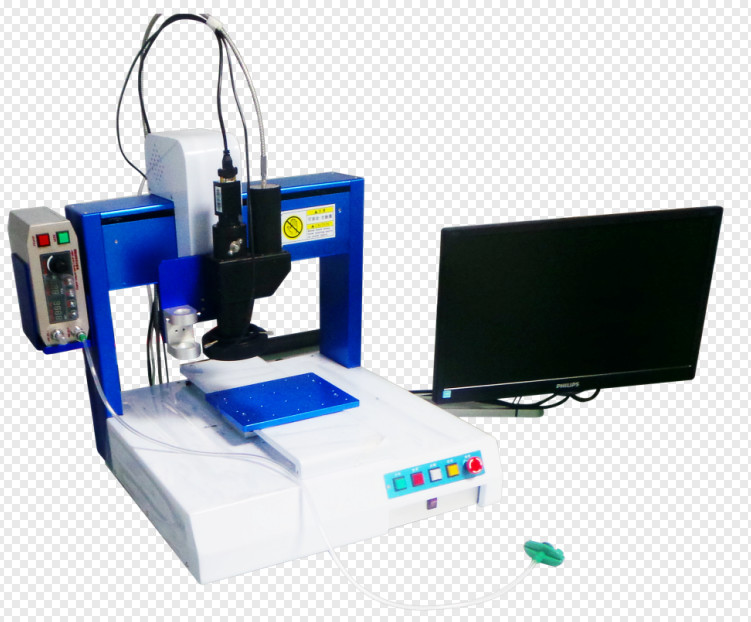

50W Automatic Precision Laser Welding Machine For Welding solar cells , Temperature Sensitive Elements This product is a fully automatic precision laser spot tin welding machine. It is applicable to spot tin welding of PCB board, terminal and other components. It can realize multi-point automatic continuous spot tin and welding by robot and machine vision double positioning, which can replace traditional manual solder welding, and effectively supplement the process that is difficult to weld by conventional process. The system is stable, high precision, excellent performance, friendly human-computer interface, which can greatly improve the production capacity and performance of the product.
- High automation and efficiency
- Good welding effect and high yield
- No consumables, low cost
- It is easy to operate and can replace manual operation
- Suitable for large scale application
| Item | Parameter |
| Rated output power (optical fiber output) | 50W |
| Wavelength | 808nm |
| Fiber core diameter |
400μm |
| Optical fiber numerical aperture |
0.22 |
| Laser power stability |
≥98% |
| Life expectancy |
＞10,000H |
| Power Supply |
200±20V AC,50Hz |
| Maximum current |
＜6A |
| Ambient temperature |
10~30℃ |
| Storage temperature |
0~40℃ |
| relative humidity |
80% |
FAQ
1. How is the payment?
30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
Ship in 7 days after 100% payment
Plywood box packaging
3. How will you guarantee aftersales services?
We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online
4. How about your presales service?
Speeding offer within 8 hours quick response and free consulting
Free sample marking or testing is available
Progressing solution design to all clients, including distributors and end users
