Multifunctional 500W High Precision Laser Cutting Machine For Eyewear Frame
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Applicable Material | Metal | Laser Type | Fiber Laser |
|---|---|---|---|
| Cutting Area | 600*400mm Or 600*600mm | Laser Source | Raycus, Max, IPG, Nlight |
| Cutting Head | Precitec, WSX, Raytool, IPG | Control Software | Cypcut |
| Graphic Format Supported | AI, BMP, Dst, Dwg, DXF | Cooling Mode | Water |
| Cutting Precision | 0.02mm | ||
| Highlight | Multifunctional High Precision Laser Cutting Machine,500W High Precision Laser Cutting Machine,Multifunctional cnc fiber laser cutting machine |
||
Product Description

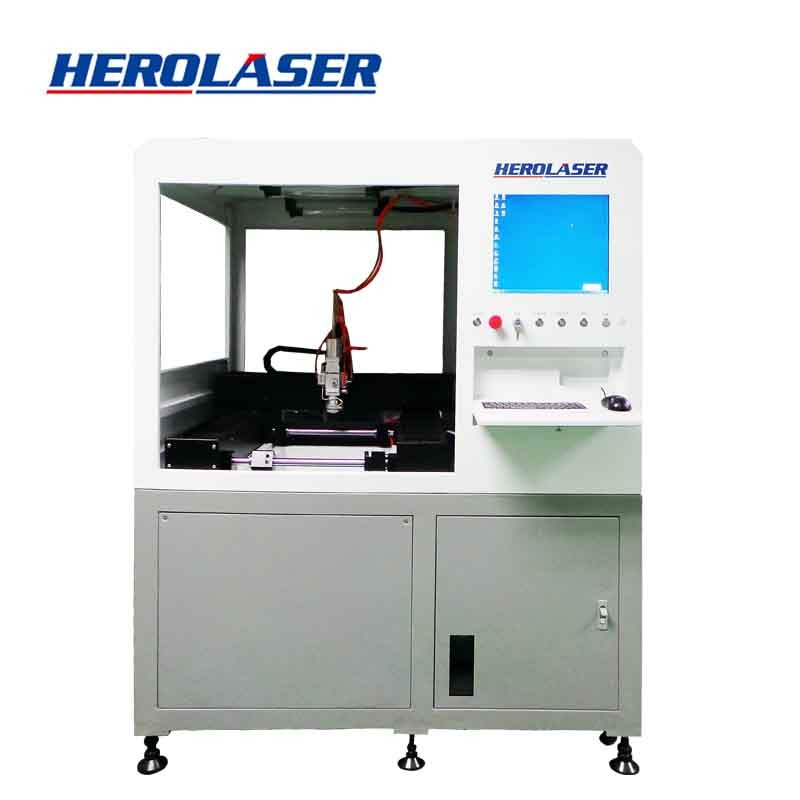

High Precision Eyewear Frame Laser Cutting Machine
Features
- Practical new type integrated design, compact structure, reliable, safe and practical.
- Adopts optical marble worktable, anti-vibration frame design, suitable for high-speed moving, high stablity.
- High-precision, ful feedback linar motor worktable, high-speed. The high-precision vision positioning system is optional.
- Multi-functions integrated controlled, self-developing patented software, the processing is automatic, the PC interface real-time feedbacks, display all the functions and working status. Non-contact type processing, no mechanical deformation.
Applicable materials and fields
- Suitable for various of metallic thin sheet cutting, drilling, such as consume electronics parts, metallic parts, panels.
- Various of metallic material precision cutting and drilling.
Model list
| No. | Name | Parameter |
| 1 | Laser type | Imported fiber laser source |
| 2 | Laser power | 500W |
| 3 | Cutting range | 200x200MM |
| 4 | Cutting thickness | Max. 3.0MM |
| 5 | Cutting line width | 0.04- 0.06MM |
| 6 | Cutting speed | ≤10M/MIN |
| 7 | Repeatability positioning accuracy | 0.01MM |
| 8 | Cooling mode | Water cooled |
| 9 | Air pressure required | 1.2- 1.5MPA |
| 10 | Total power | 4.5KW |
| 11 | Power supply | 220V/ 50Hz/ 60A |
| 12 | Dimensions | 1200x2000x1400MM |
| 13 | Weight | 1200KG |
| 14 | Optional | Smoke and dust recycling and purifying system |
