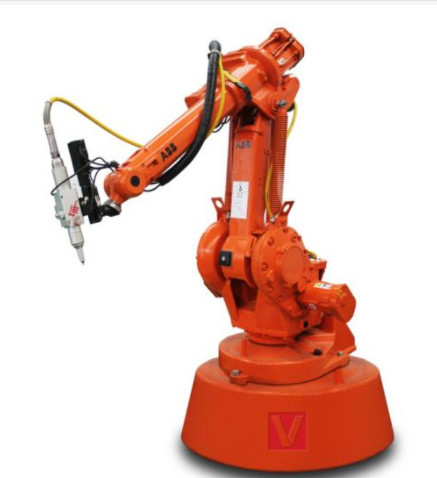

1500W 360 Degrees Robot Arm Welding Machine For Precision Machining
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Herolaser | Warranty | 1Year , 2 Year |
|---|---|---|---|
| Laser Source Brand | IPG/MAX/RECI | Transportation | Ocean Freight , Air Transportation , Railway Transportation |
| Deliver Method | FOB , CFR | Application | Electrical Accessories Processing , Handicraft Processing , Hardware Processing , Mold Processing |
| After-Sales Service | Professional Technical Taem 24 Hours Online | Keywords | Damage Free Marking |
| Highlight | 1500W robot arm welding machine,360 degrees robot arm welding machine,60 degrees automated welding systems |
||
Product Description

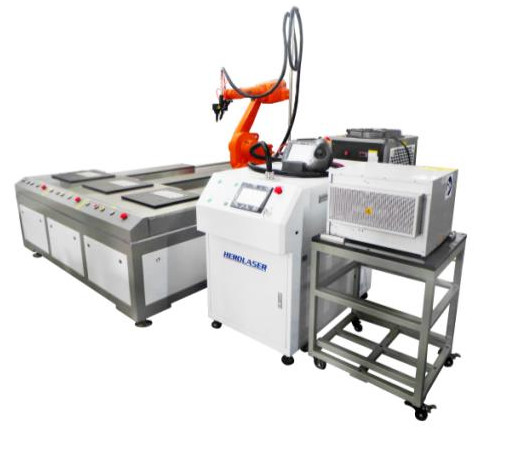

Three position robot laser welding machine for various sheet metal Ppocessing , precision machining.The laser welding system of Ming radium laser fiber laser consists of fiber laser, laser power supply, control system, laser indication and positioning system, motion system, rotation system, wobble laser welding joint, cooling system, etc. The laser generator adopts the international leading fiber laser, the laser pulse waveform can be edited arbitrarily, and the energy output is stable.
The laser welding joint is independently developed by Ming radium laser, which has very high welding stability and flexibility, and can rotate and swing 360 degrees.
The cooling system of fiber laser welding machine is composed of temperature measuring device, water circulation, radiator and deionized resin. The temperature measuring device detects the water temperature in the water tank in real time to judge whether the water temperature is too high. If the temperature exceeds the upper limit, the system will automatically turn off the laser to avoid damage to the laser. After the machine is turned on, the water circulation and the radiator form a heat exchange with the outside world, which quickly takes away the heat generated during the operation of the laser to ensure the normal operation of the laser. The cooling system and the whole machine adopt the integrated design, which makes the system more concise and occupies less space.
1. The laser spot is very small, the heat affected area is small, the deformation is small, and the welding speed is very fast.
2. The fiber laser has a life of 100000 hours, and has no consumables at all, and it is more convenient to maintain daily.
3. The energy provided by the power supply is converted into laser energy, and the equipment is more energy-saving and energy-saving.
4. CCD liquid crystal monitoring and observation system can clearly observe the product positioning and welding effect according to the red light indication.
5. Fiber laser multimodal welding can freely convert pulse and continuous mode according to product demand.
6. It can be used for flexible transmission non-contact welding for inaccessible precise parts, which is very flexible, and can be used for seam welding, welding, butt welding and overlap welding of various complex products.
| Laser / power | 500W,1000W,1500W,2000W |
| Laser wavelength | 1070nm |
| Working mode | Continuous / modulation |
| Control system | Ml laser control system |
| Aiming and positioning mode | CCD, red light indication |
| Cooling mode | Water cooling |
| Power consumption of the whole machine | 5KW ~12KW |
| Electricity demand | 220V ± 10%, 50 Hz / 60 Hz AC |
FAQ
1. How is the payment?
30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
Ship in 7 days after 100% payment
Plywood box packaging
3. How will you guarantee aftersales services?
We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online
4. How about your presales service?
Speeding offer within 8 hours quick response and free consulting
Free sample marking or testing is available
Progressing solution design to all clients, including distributors and end users
