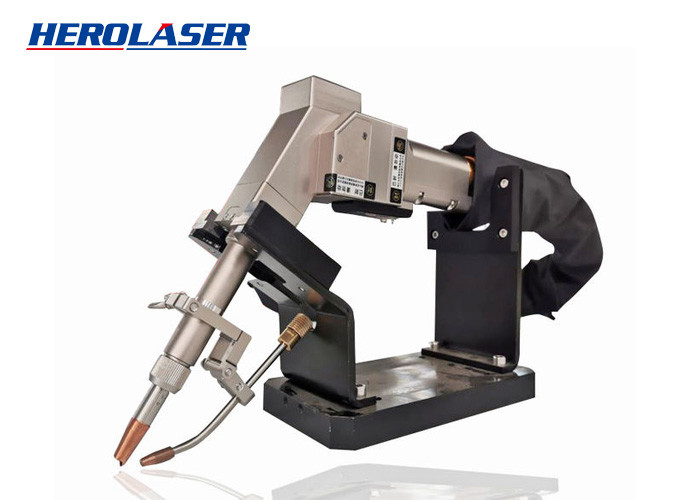

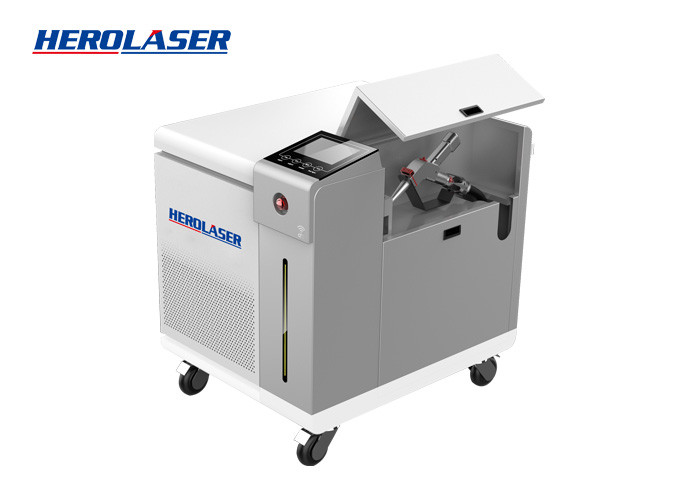

1070nm Handheld Laser Welding System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | ML-WF-2000W | Laser Power | 2000W |
|---|---|---|---|
| Laser Wavelength | 1070nm | Fiber Cable Length | 10-15m |
| Voltage | 380V | Power Consumption | 9KW |
| Highlight | SGS 1070nm handheld laser welding system,SGS 380V handheld laser welding system,1070nm metal welding equipment |
||
Product Description
Handheld Laser Welding Machine With Beautiful Weld Fast Speed Less Consumables
Herolaser handheld fiber laser welding machine has simple and reasonable structure, thereby being easy to operate, high welding efficiency and low energy consumption, so as to reduce customer's costs of time, equipment investment, labour, etc. that can easily do a variety of welding methods, low consumables, easy to use, cost-effective, environmental protection, efficient, intelligent, bring you extraordinary welding experience, is a good helper of your promising business.
Machine Parameter
| No. | Item | ML-WF-1000W | ML-WF-1500W | ML-WF-2000W |
| 1 | Laser Power | 1000W | 1500W | 2000W |
| 2 | laser Wavelength | 1070nm | 1070nm | 1070nm |
| 3 | Fiber Cable Length | 10m | 10m | 10m |
| 4 | Cooling Method | Water | Water | Water |
| 5 | Voltage | 220V | 220V | 380V |
| 6 | Power Consumption | 5KW | 7KW | 9KW |
| 7 | Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| 8 | Currency | 23A | 32A | 23A |
| 9 | Laser Gun | Motor/lens wobble | Motor/lens wobble | Motor/lens wobble |
| 10 | Focus Length | 150mm | 150mm | 150mm |
| 11 | Cryogenic Water Flow | 70L/min | 70L/min | 83L/min |
| 12 | Room Temperature Water Flow | 15L/min | 18L/min | 18L/min |
| 13 | Water | Distilled water | ||
| 14 | Laser Control | Laser enable + security lock + metal switch/safety clamp | ||
| 15 | Touch Screen | PLC screen and board | ||
| 16 | Wire Feeder | Auto feeding and drawback | ||
