FDA Certified Mould Laser Welding Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Source | YAG Laser | Laser Wevelength | 1064nm |
|---|---|---|---|
| Max Energy Per Pulse (Joule) | 15J | Pulse Duration (sec) | 0.1S |
| Focal Length (mm) | 90mm | Pulse Repetition Frequency (Hz) | ≤50Hz |
| Mode (CW Or Pulse) | Pulse | Exit Laser Beam Or Beam Diameter At Lens (mm) | 0.2-2mm |
| Highlight | FDA 90mm Mould Laser Welding Machine,90mm Mould Laser Welding Machine,FDA jewellery laser welding machine |
||
Product Description

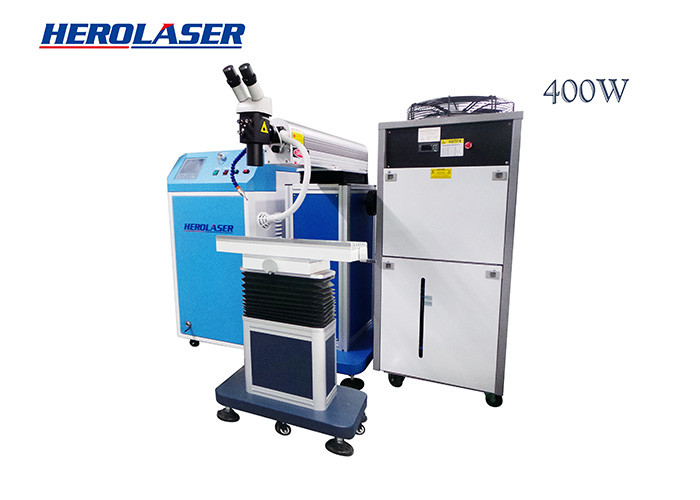

Ceramic Condenser Cavity Mould Laser Welding Machine 1064nm Wavelength
Product introdution:
While TIG(tungsten inert gas) welding may be the preferred option for many factory mold welding, high power pulsed laser welding is a high quality process that can provide a repaired mold that behaves as if it were new. Repairing a worn mold is always cheaper than replacing it.
Plastics processors will find that the alternative method of pulsed laser welding provides better results with less damage to the base material, so the mold will produce better quality parts and significantly longer service life after repair.
Plastics processors will find that the alternative method of pulsed laser welding provides better results with less damage to the base material, so the mold will produce better quality parts and significantly longer service life after repair.
Advantages and features:
- Ability for molds to be repaired multiple times
- Quicker repair of molds with much faster machining or bench time
- Portable and flexible to reach almost any feature, even in large molds
- Less expensive from a total-cost perspective and lasts longer
Product parameters:
| Model No | ML-WY-M02 |
| Mode (CW or Pulse) | Pulse |
| Power | 400w |
| Laser gain media | NO |
| TEMoo | NA |
| Max Energy per pulse (Joule) | 15J |
| Pulse Duration (sec) | 0.1S |
| Pulse repetition frequency (Hz) | ≤50Hz |
| Wavelength (nm) | 1064NM |
| Minimal Spot Size (mm) | 0.2MM |
| Exit Laser beam or beam diameter at Lens (mm) | 0.2-2mm |
| Focal Length (mm) | 90mm |
| Beam Divergence (mrad) | NA |
| Maximum lasing time (sec) | NA |
| Emergency Stop | offer |
| Key Control | offer |
| Beam Shutter | have |
| Stand By Mode | not offer |
| Activation Warning | not offer |
| Malfunction Warning | Xenon lemp,water presure,lack of presure warning |
| Remote Control | have |
| Viewing Window OD | not offer |
| Protective Housing | not offer |
| Interlock on Protective Housing | not offer |
| Hazard Class | 4 class |
| Labels | welding |
Field of application:
It is specially designed for large mold patch welding, such as plastic mold and die-casting mold of automobile mold, shell mold, tire mold, plastic cover mold of home appliance. The equipped hanging-arm is power-driven, so it can move up and down and make 360 degree spin. It can conduct patch welding on large mold with 3 meters’ length and several tons’ weight. Besides, this equipment has pulley wheel, easy to move, it can be moved to the place nearby injection machine and conduct direct patch welding. There is no need to disassemble the mold. It is also equipped with manual worktable, which is suitable for making patch welding on middle or small size mold.

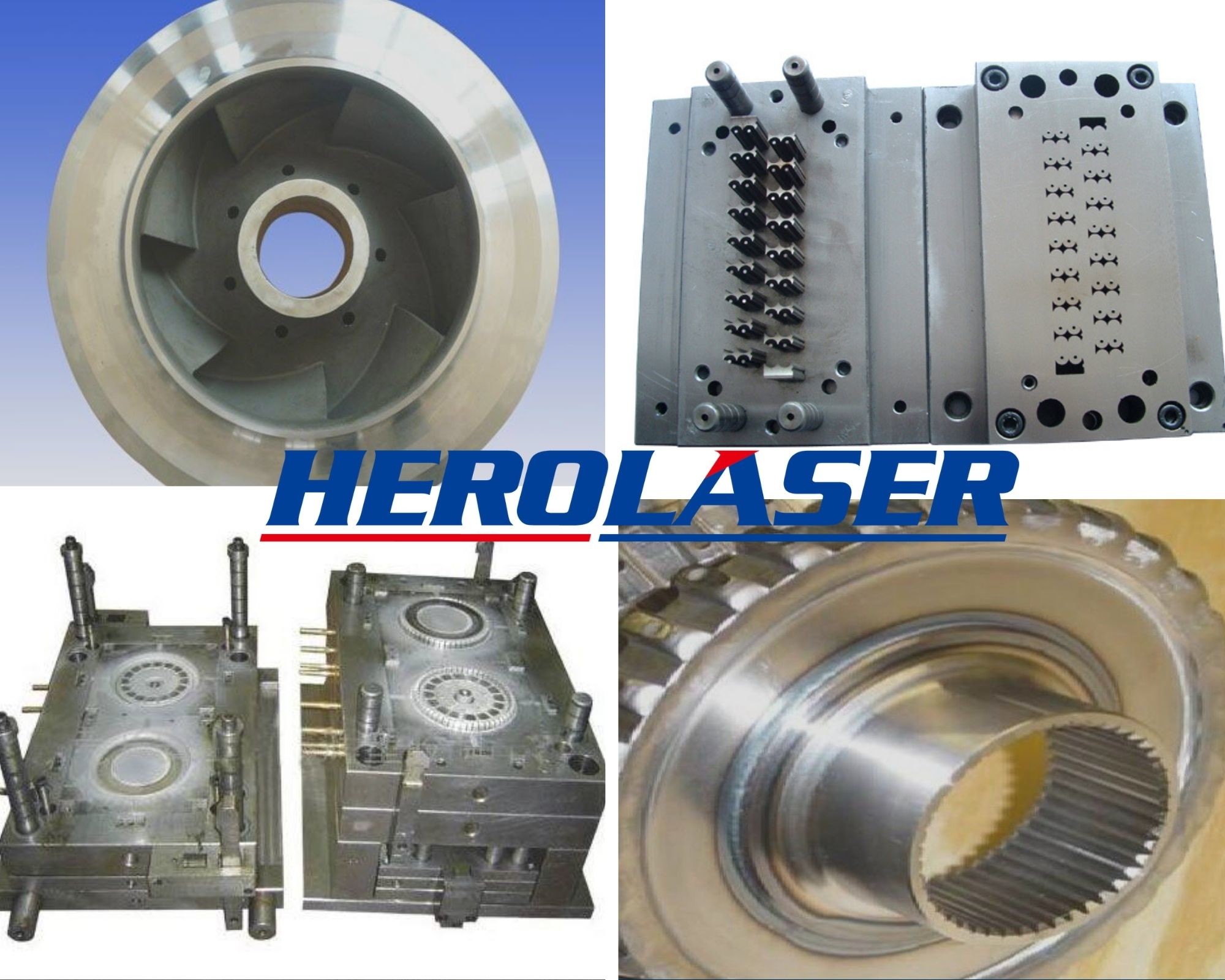

Samples for reference:
FAQ
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hours quick response and free consulting.
- Free sample welding or testing is available
- Progressing solution design to all clients, including distributors and end users.
