Portable Handheld Fiber Laser Welding Machine Laser Welding System 1000W 1500W 2000W
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Wire Feeding | Automatic | Focus Length | 150mm |
|---|---|---|---|
| Wavelength | 1070nm | Power Supply | 220/380VAC ± 10% / 50/60HZ |
| Cooling | Water | Laser Type | CW/Pulse |
| After-sales Services | Online Support, Video Technical Support | Warranty | 24 Months |
| Highlight | Laser Welding System 1000W,Handheld Fiber Laser Welding Machine 1500W,Portable Fiber Laser Welding Machine 2000W |
||
Product Description
Portable Handheld Fiber Laser Welding Machine Laser Welding System 1000W/1500W/2000W
Product introduction:
Herolaser is the first and leading manufacturer in China to develop and produce hand-held laser welding machine. Our handheld laser welding machines use the latest generation of laser sources, including continuous wave/pulse output modes. Suitable for welding stainless steel plate, carbon steel plate, galvanized plate and aluminum plate. Swing welding technology, adjustable focal length, operation with the highest process consistency, ensuring high quality products for the laser industry. Laser welding is a welding technique that uses lasers to join metals together. The beam provides a concentrated heat source, allowing for narrow, deep welding and high welding rates.
Laser processing has proven to be a high-quality, low-cost manufacturing process that requires a minimum of tools. Fewer dies/fixtures make laser machining ideal for prototyping. The Herolaser handheld laser welder can weld up to 10 times faster than traditional TIG welders. Safety design features (work lock, laser enable button and safety clip) provide maximum operator protection. Easy to operate and provides consistent, high-quality results across a wide range of materials and thicknesses, minimizing heat affected areas to ensure an aesthetically pleasing finish. Low power consumption, low noise operation, no special temperature condition requirements, different welding, and high melting point metals are well known advantages of laser welding machines. The equipment adopts integrated design, compact size, suitable for various working environments. Less skilled operators can produce the same results.
Machine features:
- The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost.
- Easy to operate, no need welding work license, unskilled operator can also weld products beautifully.
- No effect for etch after welding , low oxidation rate ,the color of the processing parts is intact .
- The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost.
- The welding speed is 2-10 times faster than the traditional welding speed. It can help you to save at least two welding operators a year.
- Laser welding consumes less material and has a long-life, Safer and more environmentally friendly.
Technical parameters:
| No. | Item | ML-WF-1000W | ML-WF-1500W | ML-WF-2000W |
| 1 | Laser Power | 1000W | 1500W | 2000W |
| 2 | laser Wavelength | 1070 NM | 1070 NM | 1070 NM |
| 3 | Fiber Cable length | 10 meters | 10 meters | 10 meters |
| 4 | Cooling method | Water | Water | Water |
| 5 | Voltage | 220V | 220V | 380V |
| 6 | Power consumption | 5KW | 7KW | 9KW |
| 7 | Frequency | 50/60 HZ | 50/60 HZ | 50/60 HZ |
| 8 | Currency | 23A | 32A | 23A |

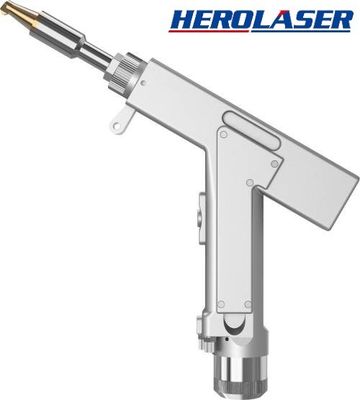

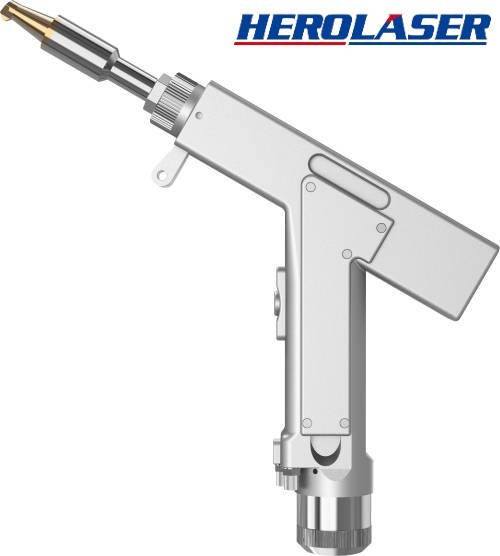

| 9 | Laser gun | motor wobble | motor wobble | motor wobble |
| 10 | Focus length | 150mm | 150mm | 150mm |
| 11 | Cryogenic water flow | 70 L/min | 70 L/min | 83 L/min |
Fiber Laser welding VS Argon Arc welding:
|
Laser welding |
Argon arc welding |
|
|
Welding scar/seam |
Smooth, no welding scar |
welding scar, color changed, need polishing work |
|
Work piece deformation |
N/A |
Always have |
|
Consumable items |
Protective gas |
Welding wire, protective gas |
|
Operation |
Mastering easily |
Difficult, Experienced masters teaching needed |
|
Efficiency |
High |
Low |
|
Cost |
Low |
High |
Application:
Ambry industry, railings of stairs and elevator, shelves, oven, stainless steel guardrail, distribution box, stainless steel home supplies etc.
Samples for reference:
F&Q:
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hours quick response and free consulting.
- Free sample welding or testing is available
- Progressing solution design to all clients, including distributors and end users.
