Product Description

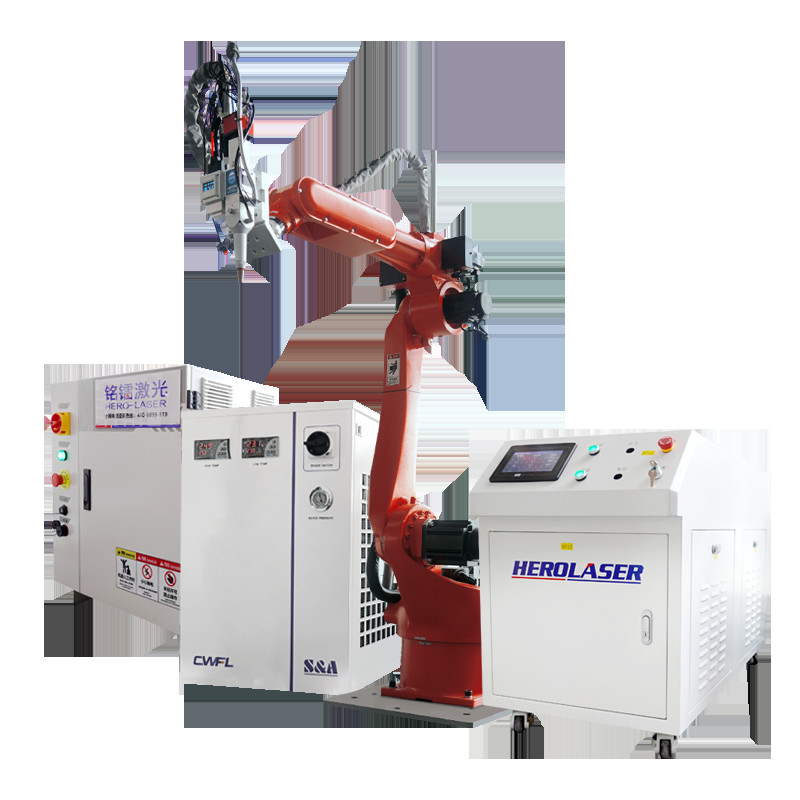

Robot Welding Machine Laser Welding Equipment for Industriel Machining
Model profile
Robot laser welding machine is composed of fiber laser, robot control system, laser positioning system, laser brand connector, cold system, etc. it has the advantages of fast, beautiful laser welding and flexible robot.
Model characteristics
The optical fiber laser has very small spot, small heat affected zone, small workpiece deformation, fast welding speed. N the weld joint is flat and beautiful. After welding, there is no need to deal with or simply deal with the process. The service life of the optical fiber laser is >100000 hours, there is no consumables at all, the daily maintenance is more convenient, the daily laser efficiency is ≥ 35%, and the use of the equipment is more energy-saving and power-saving; S red light indication with CCD monitoring and observation system can clearly observe the welding position and welding effect; The multi-mode welding of fiber laser can freely convert the modulation and continuous modes according to the product requirements. It adopts the self-equipped cooling system, circulating water cooling, and does not need any external supply of cold source water. It has the famous brand six axis robot, with high accuracy of repeated positioning, high trajectory operation, and great flexibility for the operator. It can implement the non-contact welding of the inaccessible box dense parts, It can adapt to different welding methods of various complex products, and the welding efficiency is 2-10 times that of traditional manual welding.
| N | Item | Parameter |
| 1 | Equipment name | Double position robot laser welding machine |
| 2 | laser power | 300~3000W |
| 3 | Laser wavelength | 1070NM |
| 4 | Laser wavelength | 10M |
| 5 | operation mode | Continuous / modulation |
| 6 | Welding speed range | 0~120mm/s |
| 7 | Cooling water machine | Industrial constant temperature water tank |
| 8 | Working environment temperature range | 15~35°C |
| 9 | Working environment temperature range | ＜70% No condensation |
| 10 | area covered | 1600*3000mm(Manipulator and worktable) |
| 11 | Arm length | 1400mm |
| 12 | working voltage | three-phase380V |
| 13 | Spatial positioning accuracy | ±0.05mm |
FAQ
1. How is the payment?
30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
Ship in 7 days after 100% payment
Plywood box packaging
3. How will you guarantee aftersales services?
We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online
4. How about your presales service?
Speeding offer within 8 hours quick response and free consulting
Free sample marking or testing is available
Progressing solution design to all clients, including distributors and end users
