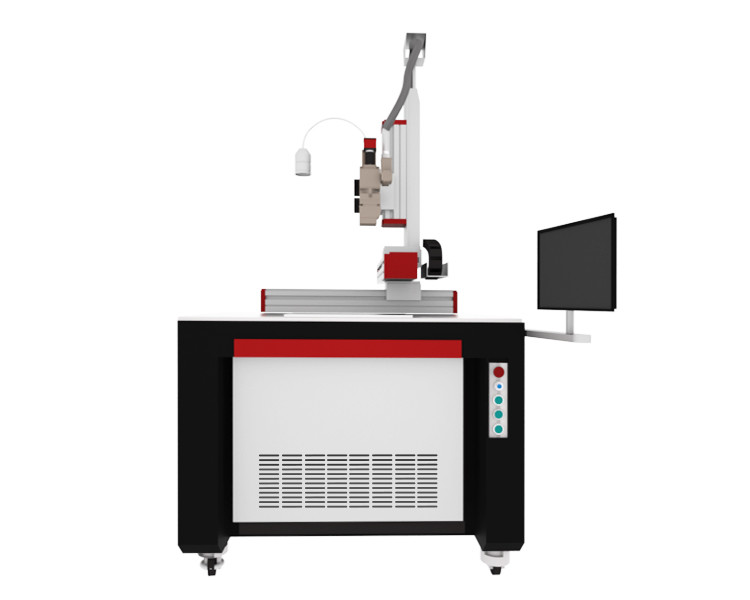

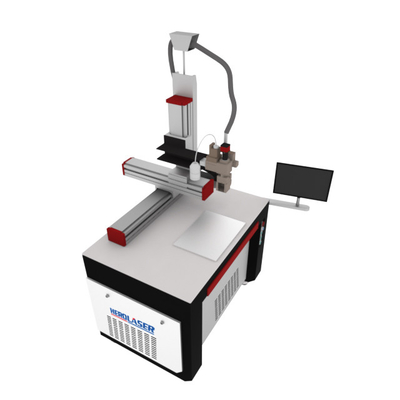

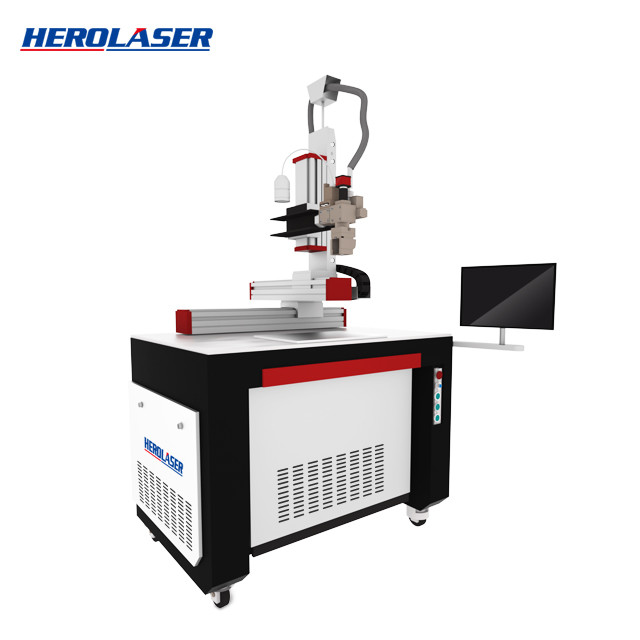

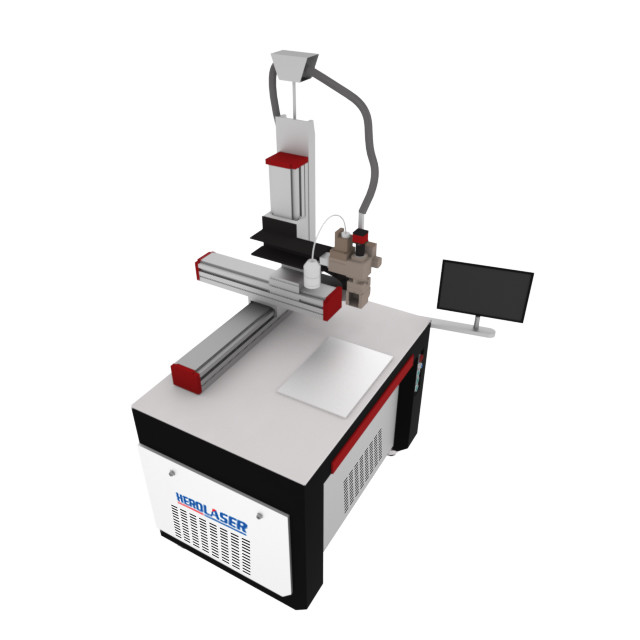

IPG Automatic Optical Fiber Laser Beam Welding Process Machine

  • IPG Automatic Optical Fiber Laser Beam Welding Process Machine
  • IPG Automatic Optical Fiber Laser Beam Welding Process Machine
  • IPG Automatic Optical Fiber Laser Beam Welding Process Machine
  • IPG Automatic Optical Fiber Laser Beam Welding Process Machine
  • IPG Automatic Optical Fiber Laser Beam Welding Process Machine
  • IPG Automatic Optical Fiber Laser Beam Welding Process Machine
Place of Origin China
Brand Name Herolaser
Certification ISO9001, FDA
Model Number ML-PL-3000
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimensions 1500×1400×1900mm Laser Power 200W 400W
Welding Mode Pulsed Welding Average Load Power 7.5KW
Welding Depth 3mm Observing System CCD + Red Light
Highlight

200W Optical Fiber Laser Welding Machine

,

400W Optical Fiber Laser Welder

,

Adjustable Current Waveform Fiber Laser Welder
Leave a Message
Product Description

IPG Automatic Optical Fiber Laser Beam Welding Process Machine



Parameter
Main technical parameters of the equipment
Product Specifications
S/N
Main component name
Parameter
Remark
1
X axis effective stroke
500mm

2
Y axis effective stroke
300mm

3
Z axis effective stroke
300mm

4
Dimensions
1500×1400×1900mm

5
Machine weight
280kg

6
Module operating speed
Y axis:10m/min
X axis:10m/min
Z axis:5m/min

7
repeated positioning accuracy
±0.02mm

8
Rotating table
Circle runout accuracy ≤0.05mm

9
electricity demand
220V/380V

10
Average load power
7.5KW

Equipment configuration list
Configuration Parameter
S/N
Name
Specifications & Models
QTY
Brand
Remark
1
Fixture mounting plate
350mm×450mm
1
Hero Laser Custom

2
Laser
According to sample welding requirements
1
MAX or IPG

3
Motor
servo motor
3
Huichuan

4
Computer
PC/Industrial Computer
1
Advantech

5
Chiller
According to laser power
1
S & A

6
Welding head
According to sample welding requirements
1
Hero Laser

7
CCD Visual observation system
camera
light source
1
Microsan
Basler/LeTV Light Source

8
Z axis module
300mm stroke
1
Hero Laser Custom
X, Y axis screw lead 10mm, Z axis screw lead 5mm; screw accuracy: C7
9
X axis module
500mm stroke
1
Hero Laser Custom
10
Y axis module
300mm stroke
1
Hero Laser Custom
11
Rotating table
Three-jaw rotary chuck
1
Hero Laser Custom

12
Lower cabinet
Sheet metal welding, paint baking
1
Hero Laser Custom




IPG Automatic Optical Fiber Laser Beam Welding Process Machine 0

Products Description

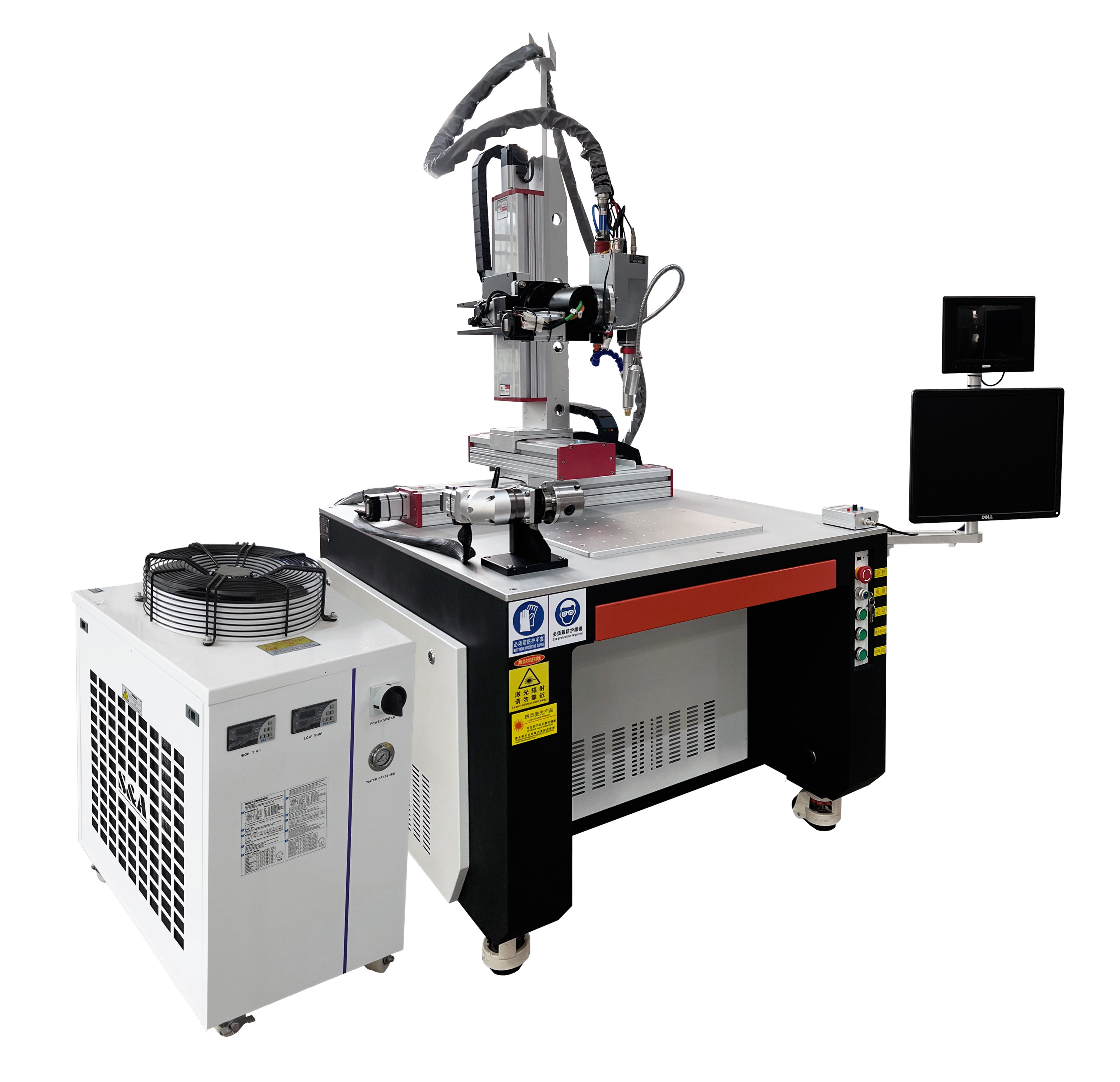

Four-dimensional automatic welding machine

Herolaser automatic laser welding machine adopts manual design, simple and convenient installation and operation, adopts self-equipped cooling system, does not need any external water tower for water cooling, the maximum frequency can reach 100HZ, the linear speed can reach 8mm/s, which greatly improves the welding efficiency and welding quality.

It can also be equipped with a four-dimensional ball screw table, using an imported servo control system, including a rotating table, which can weld cylindrical objects and other objects of various shapes, with a wide range of applications, high precision and fast speed.

The current waveform can be adjusted arbitrarily, which can be applied to various materials and alloys.
IPG Automatic Optical Fiber Laser Beam Welding Process Machine 1
Laser welding machines use high-energy pulsed lasers to weld objects


Platform laser welding machines can be widely used in complex and irregular welding processes in cabinets, kitchens, stairs,



elevators, clothes hangers, ovens, stainless steel doors, and window guardrails, power distribution boxes, stainless steel homes, and other industries.



IPG Automatic Optical Fiber Laser Beam Welding Process Machine 2

IPG Automatic Optical Fiber Laser Beam Welding Process Machine 3
IPG Automatic Optical Fiber Laser Beam Welding Process Machine 4

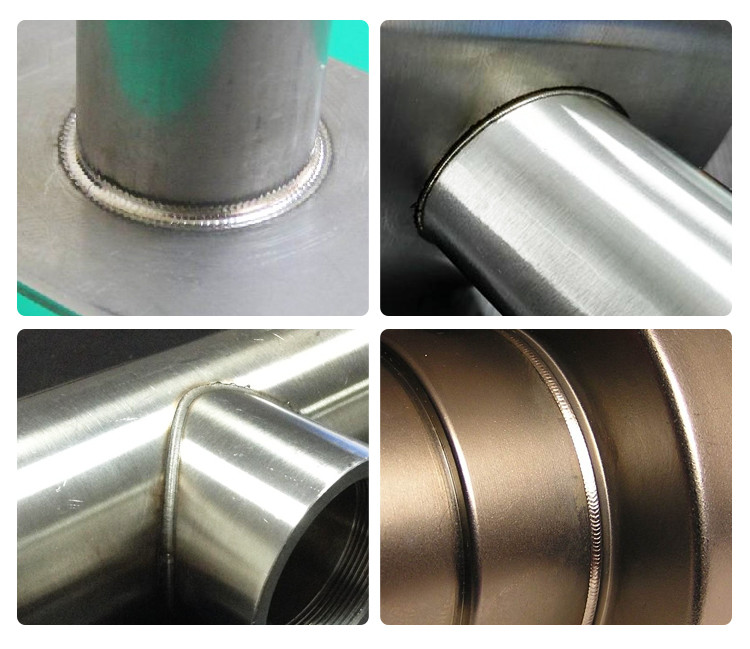

Sample Show
IPG Automatic Optical Fiber Laser Beam Welding Process Machine 5

Advantages Of Laser Welding Compared To Traditional Welding



1. Pure fiber laser source, top laser source brand, fast speed, strong beam.


2. High efficiency ,energy saving ,environment friendly and more safety operation.


3. The welding effect is good, the continuous emission laser mode is adopted, the welding point is uniform, the surface of the welding seam is very smooth and clean, and there is no need for secondary processing after welding.


4. Easy to operate and no need high experienced operators like arc welding, save you expensive technical labor cost.


5. No consumables, maintenance-free.


6. Welding speed: 3-5 m/min, which is 2-10 times the welding speed of manual arc welding.


6. A variety of hand-held welding heads are available to meet various requirements such as metal parts, internal welding, right-angle welding, narrow-side welding, large spot welding, and so on.


7. Minimal heat input, small heat-affected zone, reduce welding distortion caused by heat conduction.


8. Workers are highly efficient and will not feel tired after long welding. No UV light ,no ozone when operating ,keep operators health.


9. Using a handheld laser welding gun, the welder can work comfortably.



Applicable Industry



Platform laser welding machines can be widely used in complex and irregular welding processes in



cabinets, kitchens, stairs, elevators, clothes hangers, ovens, stainless steel doors, and window guardrails,



power distribution boxes, stainless steel homes, and other industries.



IPG Automatic Optical Fiber Laser Beam Welding Process Machine 6 IPG Automatic Optical Fiber Laser Beam Welding Process Machine 7  IPG Automatic Optical Fiber Laser Beam Welding Process Machine 8

IPG Automatic Optical Fiber Laser Beam Welding Process Machine 9

  precision machinery


IPG Automatic Optical Fiber Laser Beam Welding Process Machine 10

  communications


IPG Automatic Optical Fiber Laser Beam Welding Process Machine 11

  handicrafts


Installation Instructions
IPG Automatic Optical Fiber Laser Beam Welding Process Machine 12

ABOUT HEROLASER
Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the research and development, production and marketing of laser equipment group of companies, has formed a complete series of industrial laser equipment supply platform.

With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.
Certification
IPG Automatic Optical Fiber Laser Beam Welding Process Machine 13IPG Automatic Optical Fiber Laser Beam Welding Process Machine 14

FAQ
1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Of course you can.

7. How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.

9. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
