Herolaser Auto Robot Arm Industrial Laser Welding Machine Customized Automation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Herolaser | Laser Source Brand | IPG |
|---|---|---|---|
| Focal Spot Diameter | 0.1 Mm-5 Mm | Power Demand | 380V±10%, 50Hz/60Hz AC |
| Cooling | Water Cooling | Wavelength | 1060-1070nm |
| Highlight | 380V Industrial Laser Welding Machine,IPG Industrial Laser Welding Machine,Robot Laser Welding Machine 1070nm |
||
Product Description

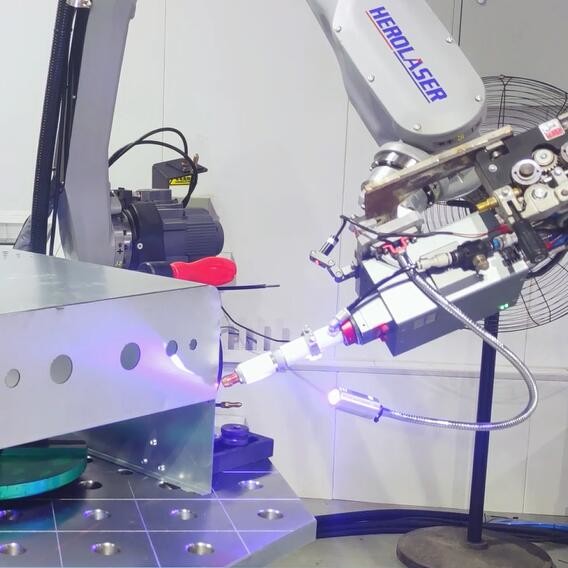

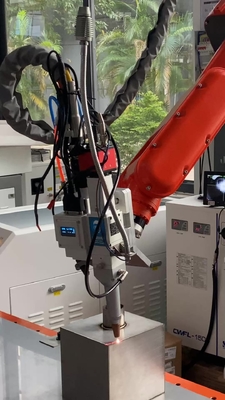

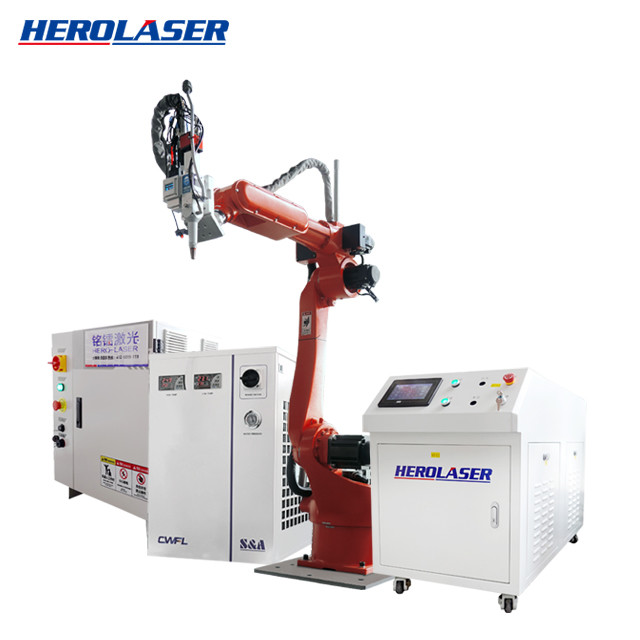

Herolaser 6000w Robot Automatic Laser Welding Machine
Model profile
Welding robot system generally consists of robot manipulator, positioner, controller, control system, welding sensor, central
control computer and corresponding safety equipment.
Advantages
1. Reduce enterprise costs
The fully automatic welding robot realizes automatic welding operation, can lower welding materials according to the weld specifications, solves the waste of welding materials, and can operate multiple machines by one person, reducing labor costs.
2. Stable welding quality
The intelligent welding system of the fully automatic welding robot can identify the position and specification of the weld seam through the seam tracking sensor, and put down just the right welding material to fill the weld seam. The weld seam is beautiful and firm.
3. Improve welding efficiency
In traditional welding, manual factors will slow down the production plan, resulting in unclear production cycle. Full automatic welding robot can work continuously without fatigue, holidays, personal leave, occupational diseases and other problems, which improves the welding efficiency.
4. Strong environmental adaptability
Workers cannot work normally in harsh environments, which can also cause occupational diseases. Fully automatic welding robots can replace welding workers to complete the work, isolate harmful impurities such as harmful gas, arc light, radiation, smoke and dust, and stabilize the quality.
5. Realize batch welding production
Full automatic welding robot can realize teaching programming and memory storage of welding parameters. It does not need to adjust welding parameters frequently, and can easily realize batch welding production.
6. High flexibility
The number of joints of the fully automatic welding robot determines its flexibility. In the welding work, each joint cooperates flexibly to complete the welding work. The more the number of joints, the higher the flexibility.
| N | Item | Parameter |
| 1 | Equipment name | Double position robot laser welding machine |
| 2 | laser power | 300~3000W |
| 3 | Laser wavelength | 1070NM |
| 4 | Laser wavelength | 10M |
| 5 | operation mode | Continuous / modulation |
| 6 | Welding speed range | 0~120mm/s |
| 7 | Cooling water machine | Industrial constant temperature water tank |
| 8 | Working environment temperature range | 15~35°C |
| 9 | Working environment temperature range | ＜70% No condensation |
| 10 | area covered | 1600*3000mm(Manipulator and worktable) |
| 11 | Arm length | 1400mm |
| 12 | working voltage | three-phase380V |
| 13 | Spatial positioning accuracy | ±0.05mm |

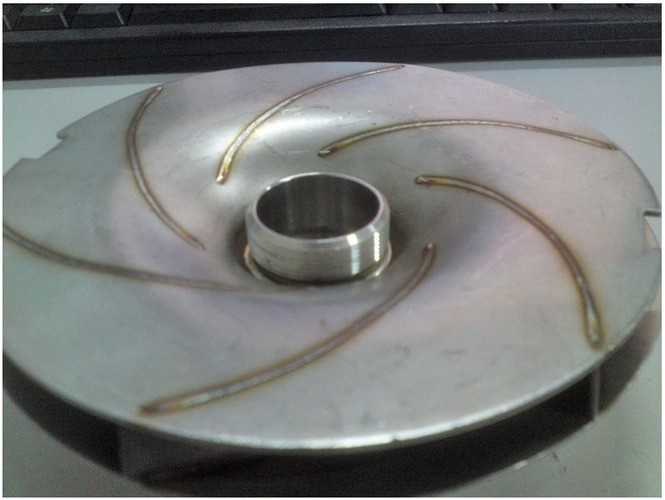

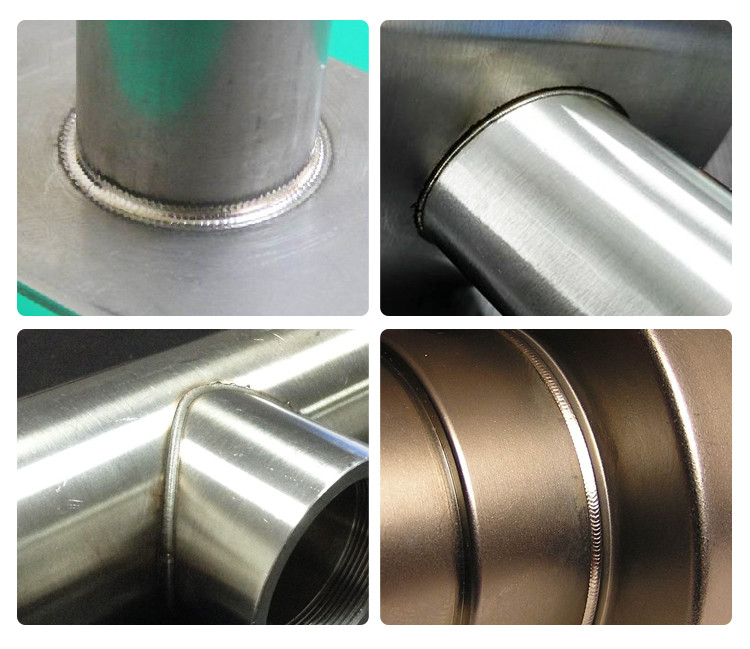

Applications
The laser welding robot system has been more and more widely used in the welding of camera parts, LCD parts, micro motors,
micro transformers and other parts of electronic devices such as mobile phones and laptops, as well as in LCD TV, high-end
digital cameras, aerospace military manufacturing, high-end automotive parts manufacturing and other fields.
FAQ
1. How is the payment?
30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
Ship in 7 days after 100% payment
Plywood box packaging
3. How will you guarantee aftersales services?
We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online
4. How about your presales service?
Speeding offer within 8 hours quick response and free consulting
Free sample marking or testing is available
Progressing solution design to all clients, including distributors and end users
