Herolaser Automatic Robotic Arm Laser Welder Machine Industrial Equipment
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Herolaser | Laser Source Brand | MAX |
|---|---|---|---|
| Focal Spot Diameter | 0.1mm-5mm | Power Demand | 380V±10%, 50Hz/60Hz AC |
| Cooling | Water Cooling | Wavelength | 1060-1070nm |
| Highlight | Robotic Arm Laser Welder Machine,5mm Laser Welder Machine,1060nm Robot Laser Welding Machine |
||
Product Description

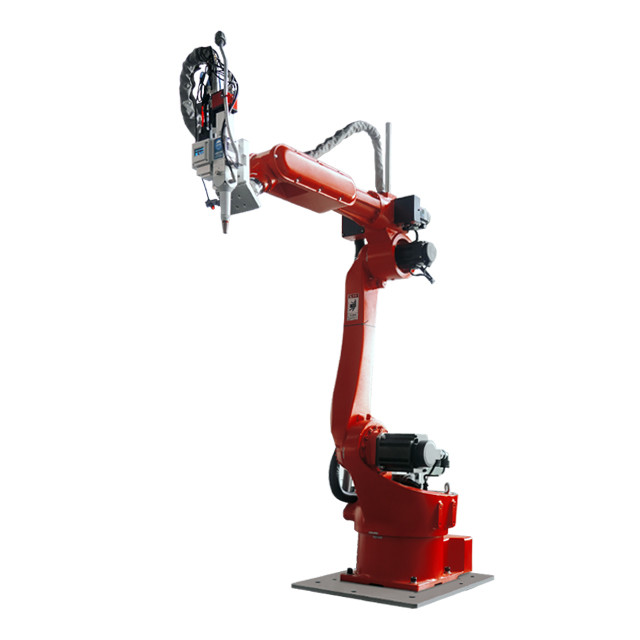

Herolaser 6000w ABB Robot Automatic Laser Welding Equipment
Model profile
Welding robot system generally consists of robot manipulator, positioner, controller, control system, welding sensor, central
control computer and corresponding safety equipment.
Advantages
1. Ensure the uniformity of product welding and improve the welding quality. When automatic welding technology is used, the key parameters in the welding process are fixed, and only manual assistance is required, which can reduce the technical requirements for workers' operation and reduce the interference of human factors on product welding quality. In the process of manual welding, the welding speed and welding time are greatly affected by human factors, and the welding quality depends on the operation experience of workers.
2. Improve the working conditions of workers. With automatic welding technology, workers only need to assist in production to avoid contact with welding arc and smoke.
3. Improve product productivity. With the development of automatic welding technology and advanced welding process, using automatic welding machine instead of manual welding can significantly improve production efficiency.
4. High controllability of production management. The automatic production rhythm of automatic welding machine is fixed, and the product cycle is clear.
5. Reduce enterprise costs. The extensive application and flexible design of automatic welding machines can realize mass production and save equipment investment.
| N | Item | Parameter |
| 1 | Equipment name | Double position robot laser welding machine |
| 2 | laser power | 300~3000W |
| 3 | Laser wavelength | 1070NM |
| 4 | Laser wavelength | 10M |
| 5 | operation mode | Continuous / modulation |
| 6 | Welding speed range | 0~120mm/s |
| 7 | Cooling water machine | Industrial constant temperature water tank |
| 8 | Working environment temperature range | 15~35°C |
| 9 | Working environment temperature range | ＜70% No condensation |
| 10 | area covered | 1600*3000mm(Manipulator and worktable) |
| 11 | Arm length | 1400mm |
| 12 | working voltage | three-phase380V |
| 13 | Spatial positioning accuracy | ±0.05mm |

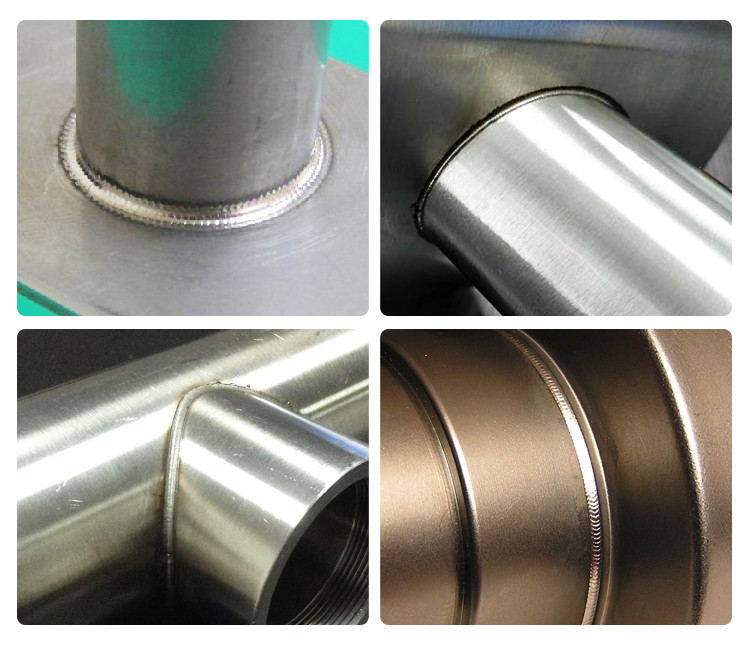

Applications
The laser welding robot system has been more and more widely used in the welding of camera parts, LCD parts, micro motors,
micro transformers and other parts of electronic devices such as mobile phones and laptops, as well as in LCD TV, high-end
digital cameras, aerospace military manufacturing, high-end automotive parts manufacturing and other fields.
FAQ
1. How is the payment?
30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
Ship in 7 days after 100% payment
Plywood box packaging
3. How will you guarantee aftersales services?
We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online
4. How about your presales service?
Speeding offer within 8 hours quick response and free consulting
Free sample marking or testing is available
Progressing solution design to all clients, including distributors and end users
