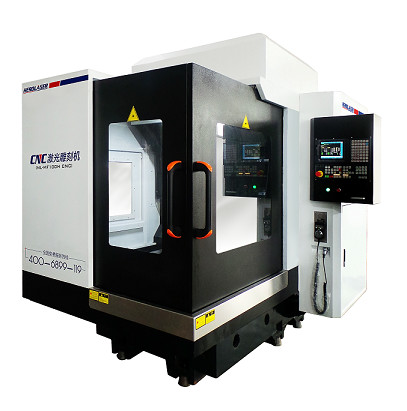

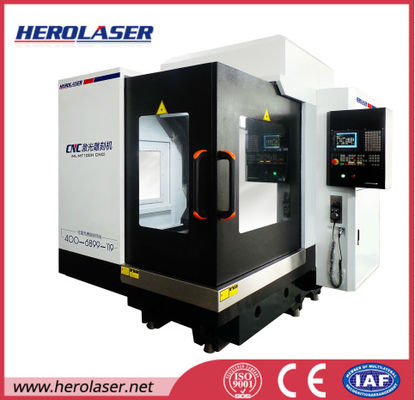

Air Cooling Automatic 100W CNC Fiber Laser Engraver For Metal

  • Air Cooling Automatic 100W CNC Fiber Laser Engraver For Metal
  • Air Cooling Automatic 100W CNC Fiber Laser Engraver For Metal
Place of Origin China
Brand Name Herolaser
Certification CE, ISO, FDA
Model Number ML-MF100H CNC
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details 890*980*1600mm, 170kgs in wooden case
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition Brand New Application Laser Marking
Control Software EZCAD Cnc Or Not Yes
Cooling Mode Air Cooling Warranty 1 Year (Laser Warranty 2 Years )
Applicable Material Aluminum,Cooper,iron,Stainless Steel Power Supply AC220V 50/60Hz
Highlight

CNC Fiber Laser Engraver For Metal

,

100W fiber laser engraver for metal

,

100W fiber marking machine
Leave a Message
Product Description

CNC Automatic Fiber Laser Marking Machine Laser Deep Engraving Machine



Model introduction:



The automatic laser deep engraving machine is a high-speed precision laser deep engraving machine developed for the mold processing industry. It is suitable for processing points, scribing, notches, polygon nails and other graphics on S316, 718, electrode copper and other materials. The use of CNC machine tools and lasers is used to replace the processes that cannot be processed efficiently by ordinary tools; the degree of automation is high, which can not only perform large-format plane segmentation marking processing, but also directly import three-dimensional graphics G codes and CNC control laser layering Processing. The advanced CNC machining technology and high-tech laser processing technology are effectively combined to realize the automatic laser finishing of large molds.



Machine Characteristics:



  1. It adopts the method of combining CNC machine tools and lasers to replace the processes that cannot be processed efficiently by ordinary tools.
  2. High degree of automation, large-format plane segmentation marking processing can be carried out.
  3. It can directly import the G code of 3D graphics and control the laser layered processing by CNC.
  4. It can process dots, dashes, notches, polygon nails and other graphics.



Specification:



S.No Item Specifications
1 Type DX-MF-100H CNC
2 Maximum machining stroke ≤ X 800 * Y 700 * Z 320mm
3 Min processing depth More than 0.1 mm
4 Laser power 100W
5 Maximum load 500kg
6 Positioning system 3-axis linkage closed-loop control CNC system + laser secondary development software + centering and alignment function
7 Processing methods Graphic division processing method + CNC motion control laser layered light emitting method
8 Graphic patchwork ≤0.05mm
9 Dynamic machining accuracy ≤0.02mm



Applicable materials and industries:



This machine is a high-speed precision laser deep engraving machine developed for the mold processing industry. It is suitable for processing points, scribing, notches, polygon nails and other graphics on S306, 718, electrode copper and other materials. It realizes the automatic laser finishing of large molds. The machine can realize both plane engraving and curved surface processing, and it has a wide range of applications.



Marking samples for reference:



Air Cooling Automatic 100W CNC Fiber Laser Engraver For Metal 0



FAQ

1. How is the payment?

  • 30% deposit before production and the balance 70% before shipment

2. How is the delivery and shipment?

  • Ship in 7 days after 100% payment;
  • Plywood box packaging

3. How will you guarantee aftersales services?

  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online

4. How about your presales service?

  • Speeding offer within 8 hous quick response and free consulting.
  • Free sample marking or testing is avaiable
  • Progressing solution design to all clients, including distributors and end users.

Air Cooling Automatic 100W CNC Fiber Laser Engraver For Metal 1
