Anti Counterfeit 120m/Min MAX Fiber Optic Laser Engraver Small Structure
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Service Life | ＞100,000 Hours | Filed Lens | F-theta Scan Lens |
|---|---|---|---|
| Suitable Material | All Metals | Laser Source | IPG,MAX,JPT |
| Laser Power | 10watt 20watt 30watt 50watt | Online Speed | ≤120m/min |
| Marking Area | 110mm | Mark Focus | 180mm |
| Highlight | 120m/min fiber optic laser engraver,MAX fiber optic laser engraver,MAX laser fiber marking machine |
||
Product Description

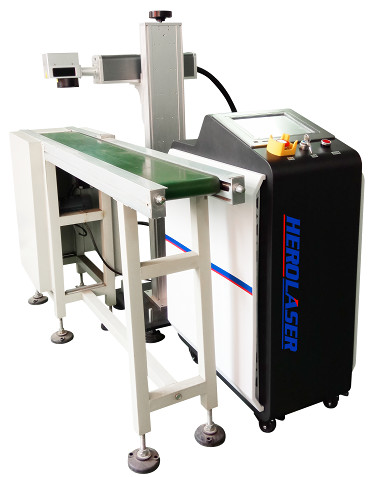

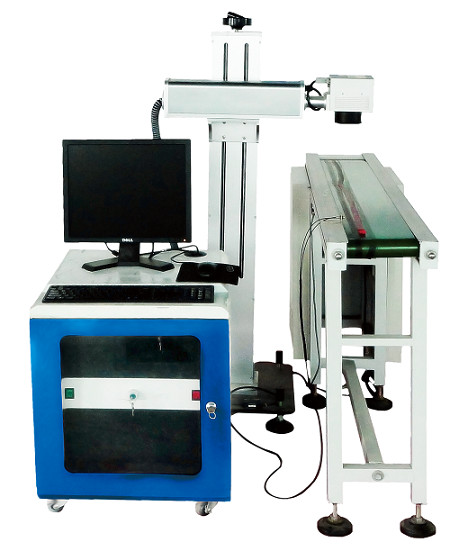

Small Structure Online Fiber Laser Marking Machine Long Life and Low Consumption
Product introdution:
On-line fiber laser marking machines can provide high quality dot matrix or smear laser coding for fast moving products to meet the needs of a variety of production lines. The machine can mark letters, numbers, Chinese characters, ICONS, symbols, one-dimensional barcode, two-dimensional barcode, date and time, serial number, random number and other text.
- Small structure, professional support can be installed on the assembly line, easy to adjust;
- Professional industrial laser light source, marking speed, high reliability, 24 hours continuous operation, to meet the needs of mass processing and production;
- High electro-optical conversion efficiency, low power consumption, long life, cost saving for customers;
- Friendly man-machine dialogue interface, easy to operate, no need to modify.
- It is widely used in packaging industry, such as laser anti-counterfeit labeling in pharmaceutical industry, anti-counterfeit traceability system in liquor industry, anti-counterfeit labeling in food, beverage, tobacco, daily hygiene products, smart card information labeling, pipeline online labeling, etc.
Characteristics of fiber laser marking machine:
- Cutting-edge fiber laser: uses the world famous IPG (made in Germany) and Max (made in China) Fiber Laser, which is efficient, high quality, stable and durable. This fiber laser engraving machine is ideal for applications requiring extremely high accuracy with strict tolerances, and boasts an average failure time of over 100,000 hours.
- GALVO-TECH CONTROLS: This etching and marking machine's high-speed GALVO-TECH vibroscope system reduces latency and improves your working speed. Its extremely high stability ensures quick scanning, engraving and turning.
- Precision Field Lens: Our compact Fθ field lenses feature an air spacer design and a protective anti-reflection coating, giving you excellent throughput with less than 1% distortion.
- Easy to operate: This laser cutting and engraving tool comes with a built-in workspace mesh and supports an optional rotation axis to mark tubes, tubes, and other surfaces. It is compatible with Windows 7, 8, and 10 and various graphics formats using EZCAD2 software.
- Manual Focus: The external red dot locator is calibrated with a laser scanner to allow precision work on the machine's workbench. Once the initial setup is complete, just adjust the elevation of the horizontal arm before engraving.
Technical details:
| Model | ML-MF-FT-DY-HW10 | ML-MF-FT-DY-HW20 | ML-MF-FT-DY-HW30 | ML-MF-FT-DY-HW50 | Customized | Remarks |
| Laser wavelength | 1.064 | 1.064 | 1.064 | 1.064 | 1.064 | |
| Average output power | 10w | 20w | 30w | 50w | other | |
| Laser brand | JPT IPG MAX | Choose according to your needs | ||||
| Standard speed of galvanometer | ≥7m/s | Up to 9 m / S | ||||
| Printing area | 110mm | Optional 140mm | ||||
| Print focus | 180mm | |||||
| print font | Line, dot matrix | |||||
| print mode | Static and dynamic | |||||
| Online speed | ≤120m/min | It depends on the content of the mark | ||||
| Print material | Metal material, alloy material, HDPE, film, smart card, etc | |||||
| Service temperature | 5-35℃ | |||||
| Operating humidity | Relative humidity less than 95%, no condensation | |||||
| Structural material | High quality aluminum alloy and stainless steel | |||||
| Editing mode | Computer software editor | |||||
| communication interface | USB interface;RS232 serial port | |||||
| Power Supply | AV220V/50HZ | |||||
| Optional Accessories | Photoelectric sensor, color code sensor, laser sensor, adjustable bracket, synchronous encoder | Standard optical fiber sensor | ||||
Application materials:
Optical fiber laser marking machine is widely applied in online marking of packaging industry, such as: the pharmaceutical industry anti-counterfeiting laser printing (drug safety code), alcohol anti-counterfeiting string goods traceability system (caps), food and beverage anti-counterfeiting mark, daily health supplies three yards, smart card information marking, tobacco anti-counterfeiting, pipe online marking, etc.
Marking samples for reference:
FAQ
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hours quick response and free consulting.
- Free sample marking or testing is available
- Progressing solution design to all clients, including distributors and end users.
