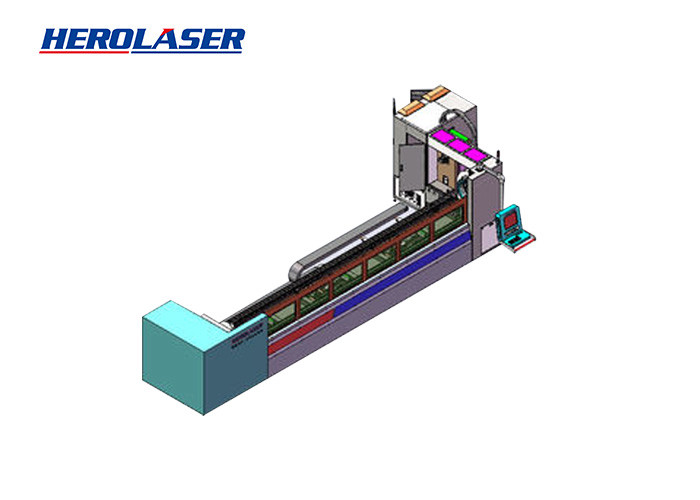

Fully Automatic Model 1500W RECI CNC Tube Cutting Machine Cypcut Control

  • Fully Automatic Model 1500W RECI CNC Tube Cutting Machine Cypcut Control
Place of Origin China
Brand Name Herolaser
Certification ISO9001
Model Number 6016D
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cnc Or Not CNC Automatic Or Not Automatic
Software Cypcut Laser IPG/MAX/RECI
Feeding Auto Blanking Sliding
Highlight

1500W CNC Tube Cutting Machine

,

RECI CNC Tube Cutting Machine

,

RECI laser metal cutting machine
Leave a Message
Product Description

6016D CNC Fiber Laser Pipe Cutting Machine MAX/IPG/RECI 1500W-20000W Fully Automatic Model



  • Configuration Parameters
  Item Standard /Brand Remark





1

  Machine tool body (Y-axis   gear rack drive)

Rail: HIWIN

Rack: YYC

Reducer: Tamagawa, Japan


 Beam (X-axis gear strip   drive)
 Z-axis (Z-axis screw drive)
 Chuck (B1/B2 shaft gear drive)



2



Feeding

Automatic feeding;

Fixed support height can be adjusted



Pipe length ≤ 6m
3  Blanking  Keep falling down



4

 Chuck clamping range

Round tube: 20 ≤ φ ≤ 160(mm)；

Square tube: 20 * 20 ≤ □≤ 140 (mm)


5  Chuck number  Front and rear double pneumatic   chucks
6  Numerically controlled  Professional cutting numerical   control software  FRIENDESS
7  Height tracking sensor Height tracking control system  FRIENDESS
8  Servo system  Fuji Electric  Japan
9  Operation software  Cutting control software  FRIENDESS
10  IPC  Outsourcing customization
11  Laser   IPG/MAX/RECI  Power 1.5KW
12  Laser cutting head  Empower  China
13  Cooling-water machine  Teyu  China
14  Dedusting and ventilation   system  Dedusting and ventilation system  Well-known brand
15  Pneumatic components  SMC, AirTAC, etc.  Japan
16  Electrical components  Schneider or equivalent  France
17
 Machine weight		  Around 3.4T  Refer to the actual   product
18
 Machine dimensions		  11000*2300*2400mm  Refer to the actual   product




  • Technical Specifications
 Model  ML-CP-6016D-JJ-HW1500
 Pipe circumcircle diameter  Φ20mm~Φ160mm
 Material and thickness (1.5KW)  Stainless steel 3 mm, carbon steel 6 mm (cutting capacity   depends on laser power)
 Cutting pipe type  Round tube, square tube and rectangular tube
 Feeding length  ≤6000mm
 Blanking Length  ≤2000mm (length can be extended after support)
 Length of leftover material  ≥170mm
 Maximum single tube weight  25KG/M







 Y axis

  Working stroke  0～6800mm
 Positioning accuracy  0.05mm
 Positioning speed  65m/min
 Repeat accuracy  0.05mm







 X axis

  Working stroke  0～240mm
 Positioning accuracy  0.05mm
 Positioning speed  65m/min
 Repeat accuracy  0.05mm



 Z axis

  Working stroke  0～200mm
 Positioning speed  30m/min

 B1 axis

 B2 axis



 Infinite rotation



 80rpm



                                               Fully Automatic Model 1500W RECI CNC Tube Cutting Machine Cypcut Control 0
