CE Certificate 100W Fiber Laser Printing Machine Enclosure Type

  • CE Certificate 100W Fiber Laser Printing Machine Enclosure Type
  • CE Certificate 100W Fiber Laser Printing Machine Enclosure Type
  • CE Certificate 100W Fiber Laser Printing Machine Enclosure Type
Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-MF-TY-FB-IW100
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details 1110mm x 860mm x 1520mm in wood box
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 100W Marking Area 110x110mm
Max. Material Thickness 300mm Output Power Adjustment Range 10%-100%
Engraving Depth ≤1.0mm Min Line Width ≤0.01mm（depends On The Material）
Min Character 0.2mm （depends On The Material） Complete Power Consumption 1kw
Highlight

CE fiber laser printing machine

,

100W fiber laser printing machine

,

CE portable fiber laser
Leave a Message
Product Description

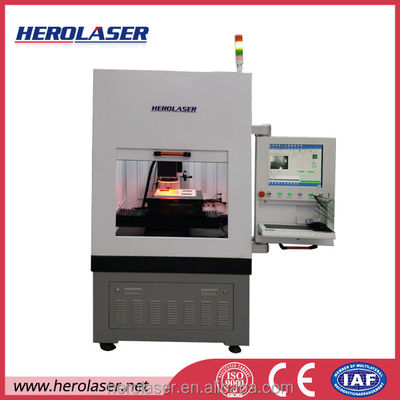

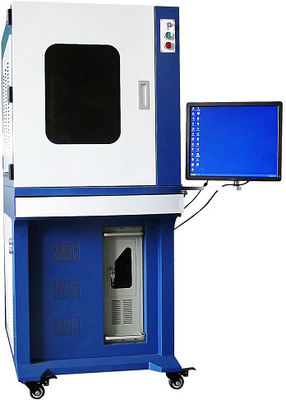

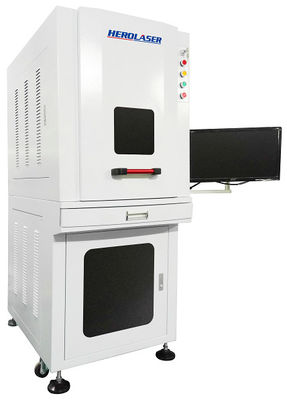

Enclosure Type Fiber Laser Marking Machine Fiber Laser Engraver Laser Marker



Product introdution:



Enclosure Type Fiber Laser Marking Machine Fiber Laser Engraver Laser Marker is suitable for efficient laser marking of metal and non-metal materials in the industrial production chain of plastic parts, electronic components, clocks and watches, medical instruments, IC cards, kitchen and bathroom, etc. They offer the perfect combination of smart software and high quality hardware. Compact size, low power consumption, life up to 100,000 hours, 24 hours continuous work, is your best choice.



Characteristics and advantages:



  • Laser power :100W+ marking area :110*110mm+ engraving depth
  • Laser source :JPT/Max; Repeat frequency: 1-600KHz; Pulse duration :200 ns
  • Galvanometer: Sino - Galvo;Software :EZCAD2.0 supports Win7/8/10 and PLT, BMP, DXF, JPG, TIF, AI, PNG, JPG and other formats.
  • High electro-optic conversion rate: up to 70%; Imported laser scanning system, marking speed up to 7m/s. The repositioning accuracy is 0.002mm
  • Fully enclosed with observation window; 2-year warranty. Customer and technical support; Simple operation, English user manual, VCD training video, software random send.



Technical details:



Model ML-MF-TY-FB-IW100
Laser wavelength (μm) 1.6
Beam quality (㎡) ＜2
Laser power (w) 100
Power supply AC220±10%
Cooling method Built-in air cooling
Marking range (mm*mm) Max 400*400
Service Life >100,000 Hours
Min linewidth 0.02
Min character 0.15
Marking speed (m/s) 0~7000
Supported graphic format PCX, BMP, PLT, DXF
Frequency (Hz) 50/60
Working temperature (℃) 10-30
Working humidity 5-85% (no condensation)
Power consumption (w) 1000



Application materials:



  • Silicone Keypad Marking
  • Metal Deep Engraving
  • Metal Surface Processing
  • High Frequency Line Processing
  • Communication Mode for Automation TCP/IP, IO,RS232
  • The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported.
  • Applicable Material: Carbon Steel, Aluminum, Stainless Steel, Brass, Copper,Gold, Silver, etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.



Marking samples for reference:

CE Certificate 100W Fiber Laser Printing Machine Enclosure Type 0

FAQ

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample marking or testing is available
  • Progressing solution design to all clients, including distributors and end users.
