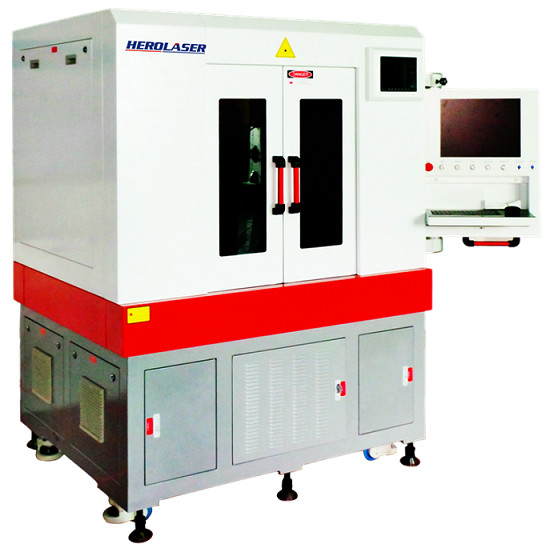

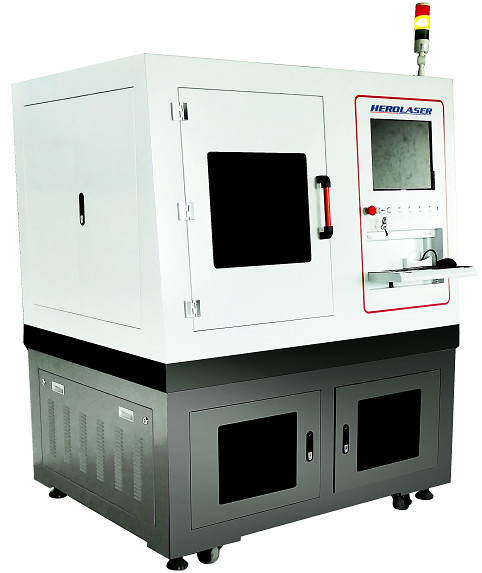

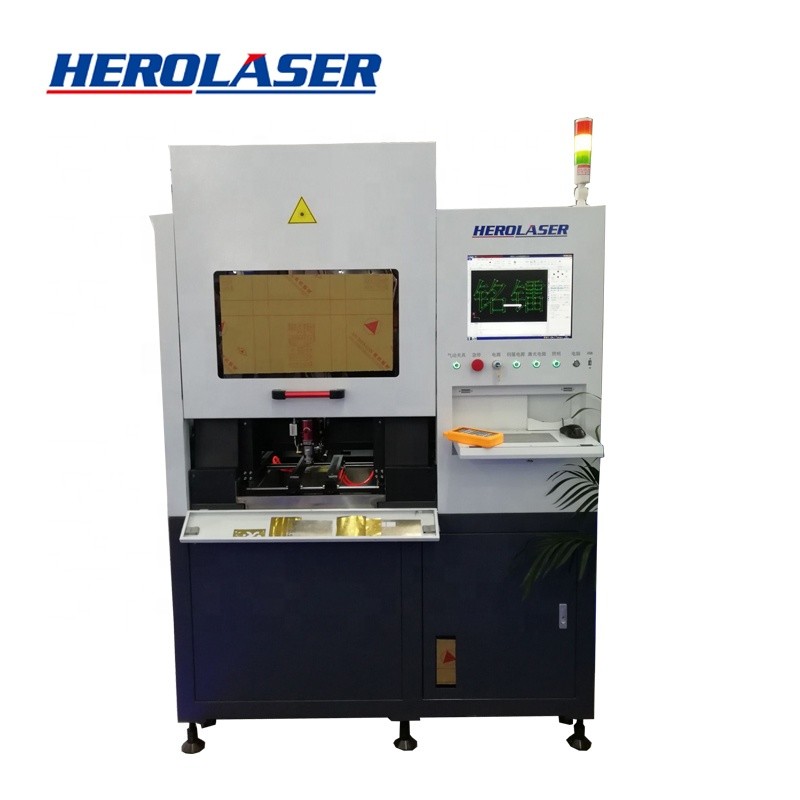

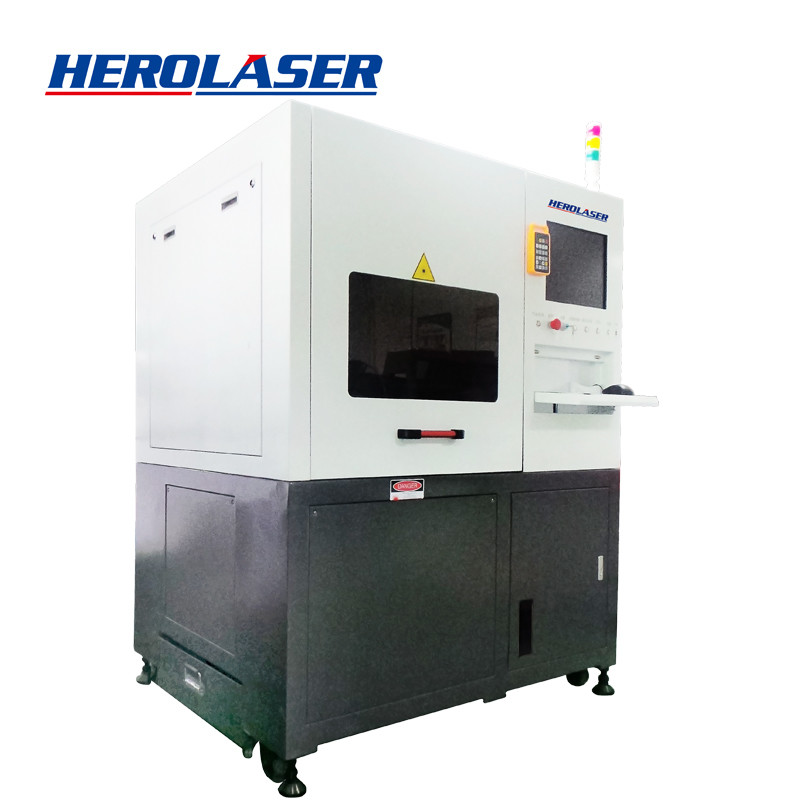

AC220V Small 1070nm Fiber Laser Metal Cutting Machine

  • AC220V Small 1070nm Fiber Laser Metal Cutting Machine
  • AC220V Small 1070nm Fiber Laser Metal Cutting Machine
  • AC220V Small 1070nm Fiber Laser Metal Cutting Machine
  • AC220V Small 1070nm Fiber Laser Metal Cutting Machine
Place of Origin China
Brand Name Herolaser
Certification CE,FDA
Model Number ML-C4-QF-OC-IW500
Minimum Order Quantity 1
Price Negotiable
Packaging Details Wooden case package: 1700 ×1250 ×1750 mm/1500 KG
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 Sets Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Laser Cutting Power Consumption 28KW
Cutting Materials Stainless Steel Carbon Steel Aluminium Working Area 1300*900mm
Max. Cutting Thickness 10mm Cutting Speed 80000mm/min
Graphic Format Supported Orted: PLT, DXF, BMP, Other Cutting Speed ≤10000mm/min
Highlight

1070nm Fiber Laser Metal Cutting Machine

,

AC220V Fiber Laser Metal Cutting Machine

,

1070nm Fiber Laser Metal Cutter
Leave a Message
Product Description

high precision laser cutting small size fiber laser metal cutting machine



Product Introduction



This laser cutting machine, covers laser technology, visual positioning technology and electronic technology, adopt high-performance UV laser. It has a high beam quality, high peak power, high-precision, high stability, high efficiency and high flexibility advanced automated manufacturing features. Can cutting a variety of high-precision, high complexity and flexible circuit boards Flex version, can be used in flexible circuit board auxiliary processing.



Advantages and Features





1
  • Original recovery system: fully enclosed double-layer protection, cutting inside the cavity, the recovery rate is greater than 99.95%
2
  • High cutting precision, fast speed, narrow cutting seam, extremely small heat-affected zone, smooth cutting surface without burrs
3
  • Fiber life can reach 100,000 hours





Technical Specs



S.N Item Specifications
1 Model type Precious metal precision cutting machine
2 Laser wavelength 1070nm
3 Maximum output power 500W
4 Effective cutting range 600*350mm
5 Cutting thickness ≤2mm
6 Cutting length range Within 3000mm
7 Cutting speed ≤10000mm/min
8 Positioning accuracy of worktable ≤0.05mm
9 Repeated positioning accuracy of worktable ≤±0.01mm
10 Electricity demand AC 220V ±5% /50Hz
11 Whole machine power consumption ≤3.5KW
12 Equipment size 1500*1600*2000mm





Applications:



It is suitable for a variety of laser processing such as cutting and perforating a variety of metal sheets, such as cutting of hardware, consumer electronic components, various instruments, and sheet metal processing.



Cutting samples for reference



AC220V Small 1070nm Fiber Laser Metal Cutting Machine 0



AC220V Small 1070nm Fiber Laser Metal Cutting Machine 1



FAQ



1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample cutting or testing is available
  • Progressing solution design to all clients, including distributors and end users.
