Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine

  • Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine
  • Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine
  • Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine
  • Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine
  • Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine
Place of Origin China
Brand Name Herolaser
Certification ISO9001
Model Number ML-P6020D-BP
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source 3000W Gear And Rack APEX/YYC
Cutting Head OSPRI Pneumatic Components SMC, AirTAC
Highlight

3000W Fiber Laser Pipe Cutting Machine

,

6M Fiber Laser Pipe Cutting Machine

,

Herolaser Fiber Laser Pipe Cutter
Leave a Message
Product Description

Standard 6m Optical Fiber Laser Pipe Cutting Machine



Parameter
Number
Name
Model
Remark
1
Bed
ML-P6020D-BP
Herolaser
2
Feeding system
Manual/automatic feeding (optional)
Herolaser
3
Blanking system
Fixed and adjustable blanking
Herolaser
4
Numerical control system
FRIENDESS
China
5
Chuck
Standard with 2 chucks (full stroke jaw of front chuck)
China
6
Servo system
Fuji Electric
Japan
7
Gear and rack
APEX/YYC
Taiwan China
8
Linear guide rail
HIWIN
Taiwan China
9
Reducer
TOMOGAWA
Japan
10
Laser source
3000W
MAX
11
Cutting head
OSPRI
China
12
Cooling-water machine
Teyu
China
13
Pneumatic components
SMC, AirTAC
Japan/Taiwan China
14
Electrical components
Schneider or equivalent
France
Number
Name
Parameter
1
Model
ML-CP-6020D-BP
2
Laser power
3KW
3
Chuck clamping range
Φ20mm~Φ220mm, □20~□150
4
Maximum single pipe weight
40kg/170kg
5
Feeding length
≤6300mm(automatic feeding)
6
Blanking length
≤2500mm(length customizable)
7
Cutting thickness (related to laser power)
carbon steel≤18mm ；Stainless steel≤8mm； Aluminum≤6mm；Brass≤5mm；
8
Positioning accuracy
≤±0.03mm
9
Repeat accuracy
≤±0.02mm
10
X-axis maximum speed
Y-axis maximum speed
Z-axis maximum speed
B-axis maximum speed
≤100m/min
≤100m/min
≤65m/min
≤100RPM
11
Idle running acceleration
1.0G
12
Power demand
AC220V±5%/50Hz
13
Power consumption
6KW-25KW
14
Dimension
11000*5200*2400(mm)
15
Weight
About 7800KG
16
Graphic file format
dxf
Products Description

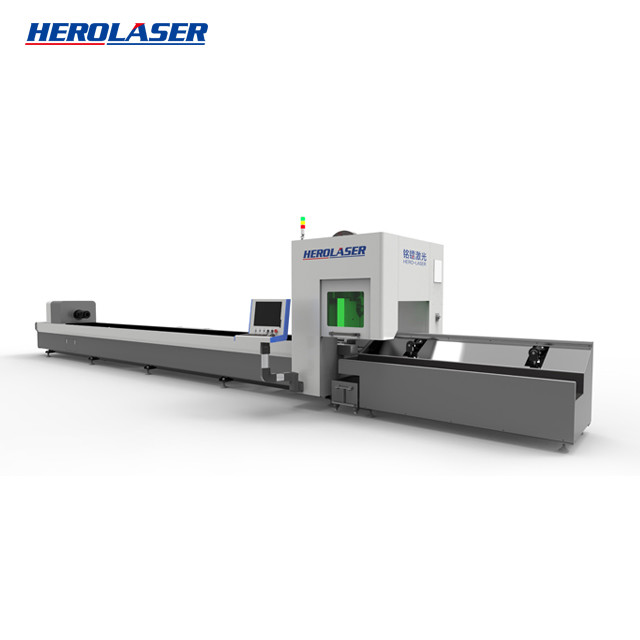

Standard 6m Optical Fiber Laser Pipe Cutting


ML-P6020D laser pipe cutting machine is a standard optical fiber laser pipe cutting machine developed by Herolaser. It adopts long-term stable and reliable advanced medium and high-power optical fiber laser, selects high-precision gear rack, imported high-precision linear guide rail and other high-efficiency transmission components, and is a precision CNC automatic laser pipe cutting machine assembled through WEIHONG professional pipe cutting control system. It is a high-tech product integrating the latest laser cutting, precision machinery, numerical control technology and other disciplines. It is mainly used for cutting metal pipes such as carbon steel pipe and stainless steel pipe (square pipe, round pipe and rectangular pipe). It is a useful cutting tool in the metal pipe processing industry. The bed adopts horizontal gantry structure and combined transmission mode of gear rack and screw. Transmission components such as reducer, guide rail and gear rack are well-known brands. It has the characteristics of stable structure, good rigidity, light weight and high dynamic response. It is a professional laser pipe cutting machine with high efficiency, precision and stability.
Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 0
Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 1
Characteristics




Small Investment High Return

The cutting section is smooth without burr, slag, blackening and yellowing, which can accurately realize the cutting of various complex graphics
Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 2
Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 3

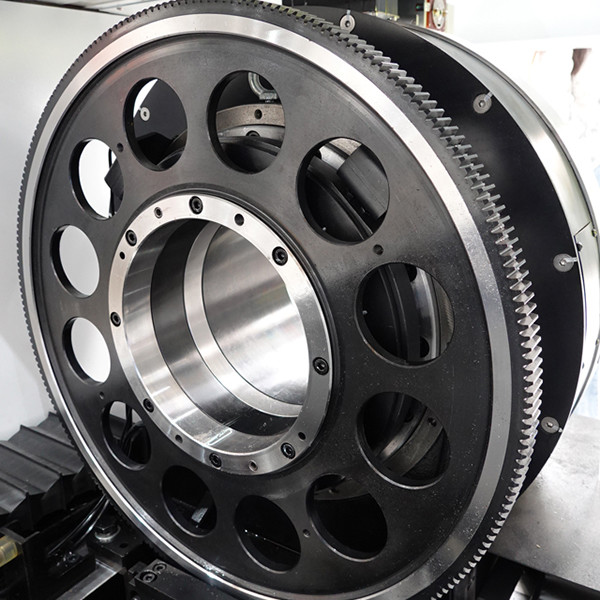

Pneumatic Chuck - labor saving and production increasing
Pneumatic clamping, large and stable clamping force to ensure high-precision cutting;
Special support frame can avoid pipe sagging and deformation, improve cutting accuracy and prolong the service life of chuck
Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 4

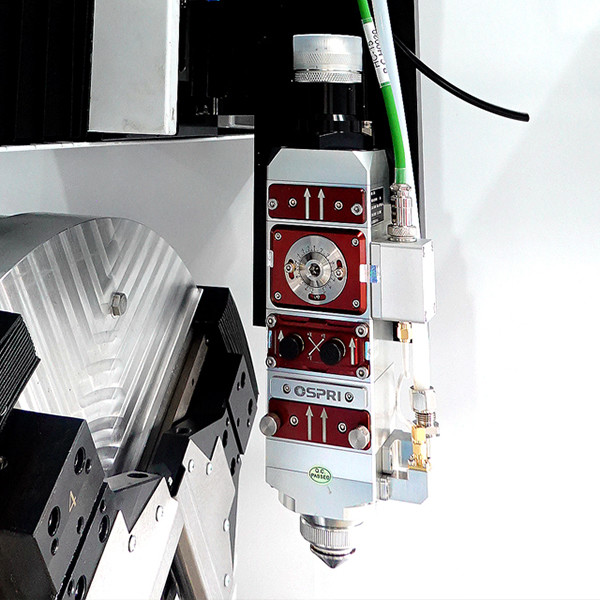

Automatic Sensing Laser Cutting Head

High idle running acceleration, fast cutting response, and corners are not easy to burn, and the cutting head will not contact the
material surface to ensure the perfection of the workpiece.
Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 5


Horizontal Gantry Structure

Gear rack and screw combined transmission mode can obtain high stability, good rigidity, light weight and high dynamic response

Technique
1, The shortest tail material is 110mm

2, Very low operation and maintenance costs

3, The laser cutting head will not contact the material surface and will not scratch the workpiece

4, The front chuck maintains the full stroke without changing the claw

5, High speed idle stroke, high acceleration, fast cutting response, not easy to burn corners

6, The rear chuck vacuums at the rear and the front chuck vacuums at the side. The tube wall is cleaner
and there is less cutting dust and smoke

7, The height of the feeding fixed support wheel can be adjusted manually, and the blanking is a
combination of follow-up support and slope sliding

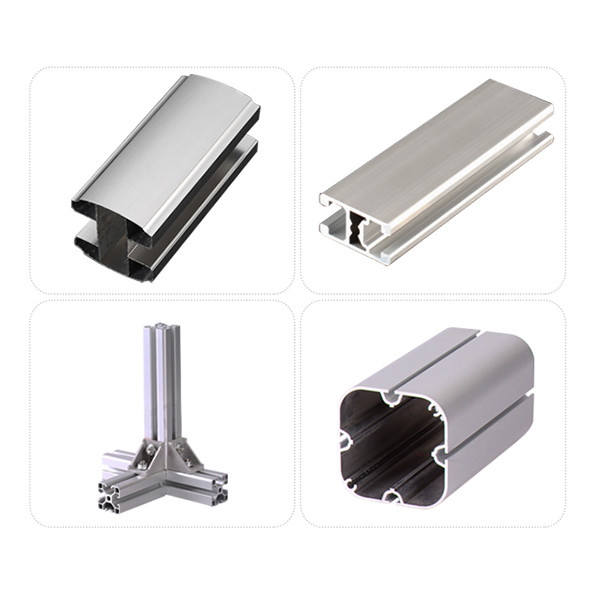

8, High-speed and high-quality laser cutting can be performed on various profiles such as round pipe, square pipe, rectangular
pipe, waist round pipe, angle steel and C-section steel

9, The pipe cutting section is smooth without burr, slag, blackening and yellowing, which can easily
realize the cutting of various complex graphics
Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 6
Applicable Industry
Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 7



automobile

Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 8



machining

Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 9



oil pipeline

Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 10



building steel structure

Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 11



fitness equipment

Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 12



Medical Equipent

Company Information
Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 13

ABOUT HEROLASER
Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the
research and development, production and marketing of laser equipment group of companies, has formed a complete series of
industrial laser equipment supply platform.

With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth
in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other
regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser
Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision
equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.
Certification
Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 14
Packaging & Shipment
Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 15
Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 16
Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 17
Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 18
Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 19
Herolaser 6M 3000W Fiber Laser Pipe Cutting Machine 20
Our Services

---Pre-Sales Service


① Free pre-sales 7*24 hours rapid response services / cousulting ② Free sample testing / inspection ③ Free design of fixtures as customers / distributor required ④ Strict quality control for our products ⑤ Quick delivery time

---After-sales Services
① 2 year guarantee for laser source(people damaged are charged) ② Full technical support / by e-mail, call and video ③ Spare parts supply. ④ Free online training installation and operation ⑤ 12 hours quick feedback & after-sales services ⑥ ODM/OEM service

FAQ
1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Of course you can.

7. How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.

9. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.

10. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
