600x600mm 0.03 Precision Fiber Laser Cutting Machine For Glasses Metal Parts

  • 600x600mm 0.03 Precision Fiber Laser Cutting Machine For Glasses Metal Parts
  • 600x600mm 0.03 Precision Fiber Laser Cutting Machine For Glasses Metal Parts
  • 600x600mm 0.03 Precision Fiber Laser Cutting Machine For Glasses Metal Parts
  • 600x600mm 0.03 Precision Fiber Laser Cutting Machine For Glasses Metal Parts
  • 600x600mm 0.03 Precision Fiber Laser Cutting Machine For Glasses Metal Parts
  • 600x600mm 0.03 Precision Fiber Laser Cutting Machine For Glasses Metal Parts
Place of Origin Shenzhen
Brand Name Herolaser
Certification CE
Model Number ML-CB-3015FA-HW
Minimum Order Quantity 1 Set
Price $36000~45000/set
Packaging Details Wooden Box
Delivery Time 25-45 days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 35 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
ML-C6-QFS 1070nm Laser Wave Length ≤20m/min
Max Speed Of X-axis ≤20m/min Positioning Accuracy ≤±0.03mm
Repeated Position Accuracy ≤±0.02mm Size Of Machine 1600*1800*2200mm
Application Glasses, Mechanical Parts
Highlight

CO2 Fiber Laser Cutting Machine

,

0.03 Precision Fiber Laser Cutting Machine

,

600x600mm High Precision Laser Cutter
Leave a Message
Product Description



Optical performance parameter
Laser source wavelength
ML-CB-3015FA-HW
Output power rate of the Laser source
1070nm
Effective cutting area
600mm*600mm
Cutting thickness (depend on Laser source power)
Carbon ≤8mm；Stainless Steel ≤4mm;
Aluminum Alloy ≤2mm; Copper ≤2mm;
Positioning accuracy
≤±0.03mm
Repeated position accuracy
≤±0.02mm
Max speed of X-axis
≤20m/min
Max speed of Y-axis
≤20m/min
Max speed of Z-axis
≤17m/min
Synthesis speed
≤20m/min
Max accelerated speed
0.3G
Bearing weight
300KG
Electric demand
AC220V±5%50Hz
Total Power consumption
6KW-25KW
Dimension
1880*1450*2100(mm)
Machine weight
About 1200KG
Support Graphical format
DXF



60w CO2 Precision Laser Cutting Machine 500x500mm

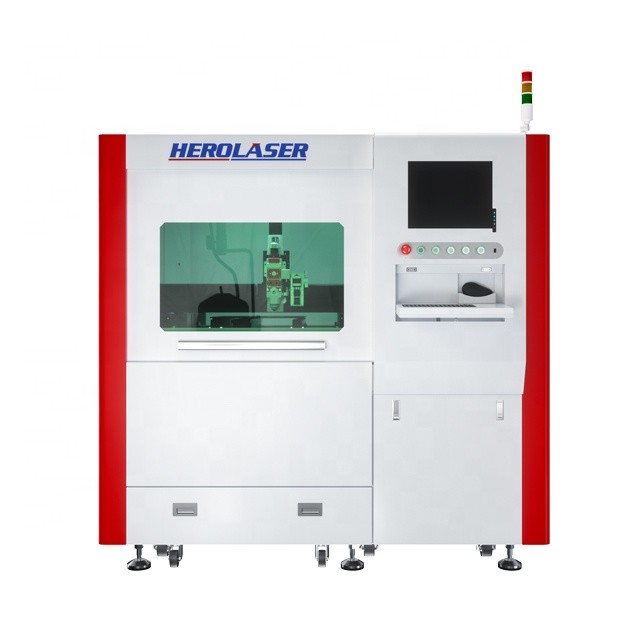

C6 600x600mm 0.03 Precision Fiber Laser Cutting Machine For Glasses Metal Parts Processing
Laser cutting uses a high-power density laser beam to quickly heat the material to vaporization temperature and evaporate to form a hole, move the beam to form a slit, so that realize the materials cutting .

Based on this ,Herolaser small area high precision cutting machine also achieves high-precision cutting, no tool wear, low heat impact, fast speed, automatic positioning, automatic correction and other functions.

Automatic Sensing Laser Cutting Head

High idle running acceleration, fast cutting response, and corners are not easy to burn, and the cutting head will not contact the material surface to ensure the perfection of the workpiece.

Model Features:
- Can cut all kinds of graphics on planiform plates.
- High precision, fast speed, narrow cutting seam, minimum heat affected zone, smooth cutting surface without burrs.
- The laser cutting head will not touch the surface of the material and will not scratch the workpiece.
- Narrow thin kerf, small heat-affected zone, minimal local deformation of the workpiece, no mechanical deformation.
- Good processing flexibility, can process any graphics.
- It can cut steel plate, stainless steel, aluminum alloy plate, hard alloy and other hard materials without deformation.
- The parallel exchange platform is used to complete the exchange within 20 seconds, which greatly improves the processing efficiency.
- Low power consumption, no reaction gas required, compressed air is used as auxiliary gas for laser cutting.

ABOUT HEROLASER
Shenzhen Herolaser Equipment Co., Ltd was set up in 2004, is a national high-tech enterprise in China, engaged in the
research and development, production and marketing of laser equipment group of companies, has formed a complete series of
industrial laser equipment supply platform.

With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth
in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other
regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser
Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision
equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.

600x600mm 0.03 Precision Fiber Laser Cutting Machine For Glasses Metal Parts 0

600x600mm 0.03 Precision Fiber Laser Cutting Machine For Glasses Metal Parts 1

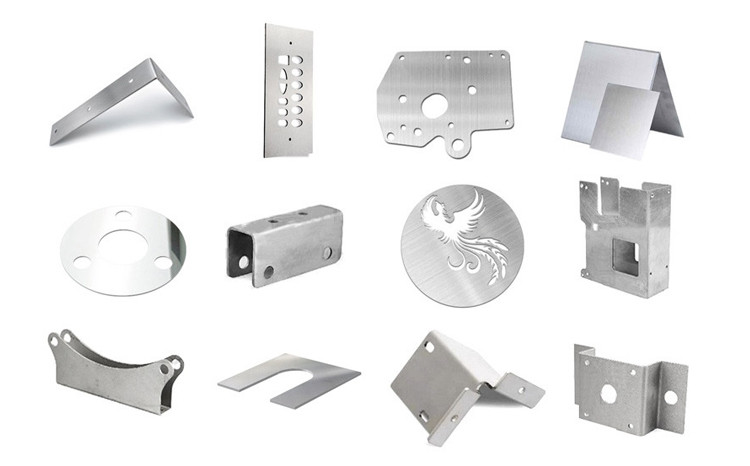

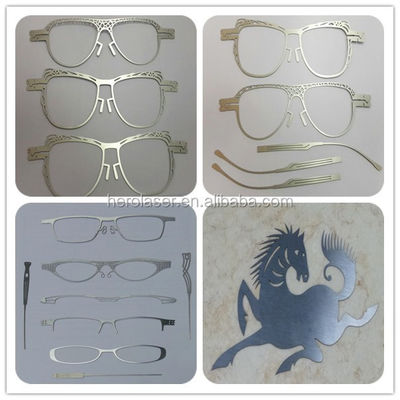

Sample Show

600x600mm 0.03 Precision Fiber Laser Cutting Machine For Glasses Metal Parts 2

Applicable Industry

600x600mm 0.03 Precision Fiber Laser Cutting Machine For Glasses Metal Parts 3


After-sales Services

① 2 year guarantee for laser source(people damaged are charged)

② Full technical support / by e-mail, call and video

③ Spare parts supply

④ Free online training installation and operation

⑤ 12 hours quick feedback & after-sales services

⑥ ODM/OEM service

FAQ



1. What model does Herolaser produce?

Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.


2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Of course you can.

7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.

9.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
